Pedestrian turnstile swing barrier, automatic swing barrier turnstile operates in a smooth, fast and reliable way with low noise and low power consumption

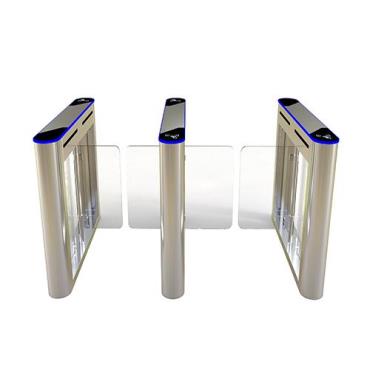

Pedestrian turnstile swing barrier JDBZ-25 is designed with slim, elegant and stylish apperance, operating in a smooth, fast and reliable way with low noise and low power consumption. As an effective crowd control solution for the applications requiring rapid throughput and modern design bleding into the aesthetics of the surrounding space, swing pedestrian turnstile gate JDBZ-25 is often installed in upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere else where autonomous entry and aesthetics are important.

Pedestrian turnstile swing barrier gate JDBZ-25 is flexibly compatible with all access control systems with dry contact output, such as the RFID card system, face recognition, temperature checker system, coin operated system, bar code system, ensuring one person, one passage each time. Finally, swing pedestrian turnstile gate JDBZ-25 provides single directional and bi-directional entry control, and automatically release the passage for free access In case of power failure or emergency.

Pedestrian Turnstile Swing Barrier Features

1. Smooth and fast opening of barriers

2. Solution for disabled and trolley access

3. Free egress in emergencies or loss of power

4. Quick and precise panel movement and alignment

5. Motorized panels open quickly and smoothly away from the user

6. Slim cabinet allows optical turnstile use in compact spaces

7. Upscale look suitable for any premium lobby

8. Run more smoothly and stop quickly after being blocked

9. Streamlined design with a more modern aesthetic

10. Adopt more reasonable electric control and layout to improve the protection level

Pedestrian Turnstile Swing Barrier Applications

Subway

Large venues

Stadium

Commercial buildings

Fitness center

Pedestrian Turnstile Swing Barrier Parameters

Housing Material: #304 stainless sheet

Dimension: 1400 x 185 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 600~900mm

Drive Motor: DC 24V brushless motor

Pass Speed: 30 ~35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication interface: RS485

Gate open when power failure: Yes

Open Time: 0.2 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
