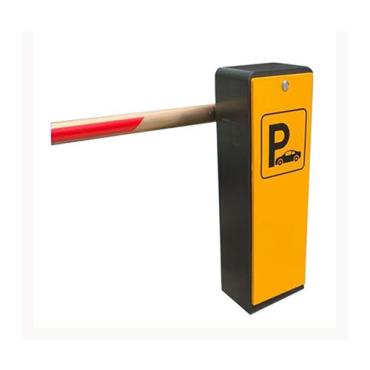

DC24V brushless motor digital automatic barrier gate, automatic parking gate provides variable speed 0.8~ 3 seconds for different boom length

Automatic gate barrier JDDZ-4 is an efficinet vehicle access control solution for controlling entry of authorized resident vehicles at safe pre-determined time intervals, coming with compact and stylish design for restrict areas with high traffic flow. The combination of the advanced digital DC24V brushless motor and a planetary gearing system with sinusoidal movement for a soft start and soft stop action, ensures a smooth elevation or lowering of the barrier arm, and avoiding bounce in the end position. On the other hand, automatic parking barrier gate JDDZ-4 provides variable speed 0.8~ 3 seconds for different boom length. In general, each boom length Is set to a standard operational speed but can be simply adjusted directly from control board to get a faster or slower speeds depending on the requirement.

Designed for both indoor and outdoor application, providing a rapid, reliable and smooth operational way with low noise and low power consumption, and flexibly integration various access control systems, automatic barrier gate JDDZ-4 is generally used in commercial and industrial applications such as controlling access to parking lots and garages in large business complexes, airports and public facilities.

Automatic Gate Barrier Featurers

1. Speed 0.8 second up to 3 seconds depending on the settings

2. Energy saving DC24V brushless motor gearbox

3. Manual operation in the event of power failure

4. Smooth and efficient operation

5. Secure operation with safety devices

6. Possibility of integration with any type of access control systems

7. Slim profile; fits on narrow islands

8. Environmentally durable cabinet

9. User-friendly and optimum accessibility

10.Easy installation and service

Automatic Gate Barrier Applications

Private and company premises

Industrial and hospital premises

Tunnels

Motorways

Public facilities

Shopping mall

Automatic Gate Barrier Parameters

Power Supply: AC220V/ AC110V±10%, 50/60hZ

Rated Power: 100W

Motor Type: DC 24V brushless digital motor

Motor Speed: 1500RPM

Open Time: 0.8~3 seconds

Boom Type & Lenght: Max 4 meters straight boom

Noise: ≤60dB

Error Action: ≤0.0%

Interfaces: IR sensor, vehicle detector, open/ close/stop

Life Cycle: 4.5 million times

Work Temperature: -35ºC~60ºC, Relative humidity:≤90%, no condensation

Dimension: 330*263*1000mm
