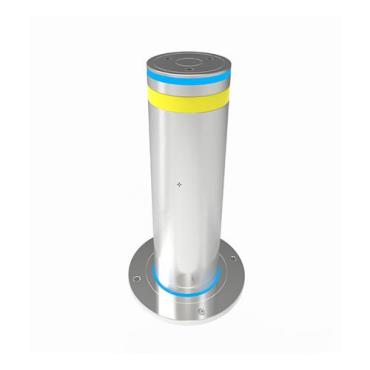

Electric retractable driveway bollard JDBRD-2, also called automatic retractable traffic bollard or automatic electric bollard, is designed to prevente unauthorized vehicles access to secured areas and provide the highest level of antiterrorism protection, which is mostly installed at the high risk places with heavy vehicle traffic flow. The unique design brings desired environmental & aesthetic enhancements to perimeter security, securing perimeter access without the sense of social disorder and active alarm measures. It can be interfaced to any access control systems. In the event of a power fail, they will automatically lower into the lowest position to release the passage. One or more such electric retractable bollard can be installed and operated together or individually.

Electric Retractable Driveway Bollard Featurers

1.The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier.

2. The hydraulic pump is built in the pit of the bollard

3. Easy to transport, store and install because of the self-supporting structure and the limited weight

4. Crash-rated security bollard with integrated hydraulic pump for ease of installation, increased relaibilty and intensive use

5. Easy maintenance (can be performed by a single person)

6. Low power consumption

7. Equipped with anti-vandal function, which detects a forced command, to reset the bollard and activate an alarm

8. Ability to operate even in the event of a power failure

9. Suitable for a wide variety of HVM applications

10. Sleek design and pleasing aesthetics

Electric Retractable Driveway Bollard Applications

Prisons

Office buildings

Shopping centres

Stadiums

Nuclear facilities

High profile buildings

Pedestrian zones

Electric Retractable Driveway Bollard Parameters

System Control: Electric hydraulic drive

Power Supply: AC220V/ AC110V±10%, 50/60hZ (control voltage DC24V)

Material:#304 stainess steel ( #201, #304, #316 stainless steel optional)

Diameter: φ168mm, φ219mm, φ273mmoptional

Thickness: 6mm, 8mm, 10mm, 12mm, 15mm, 20mm optional

Box Round Diameter : φ370mm. Height: 990mm

Through Pressure: Bearing over 80 ton container truck

Outside Bollard Height: 600mm

Remote Control Range: ≤ 30 meters

System Power: 3.7 KW

Rising Time: ≤3~5 seconds (adjustable)

Falling Time: ≤ 3 seconds (adjustable)

Working Temperature: -35ºC~75ºC

Storage Temperature: -10ºC~65ºC, anti-rain, anti-dust, anti-moisture
