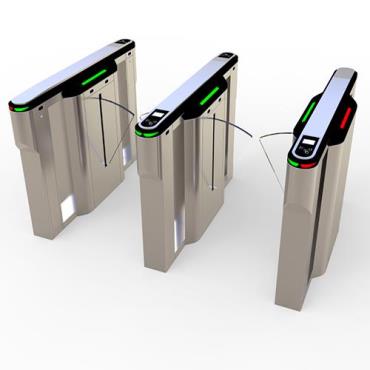

Unique design optical flap turnstile, automatic flap gate turnstile is ideal crowd control solution with low power consumption

Optical flap turnstile JDYZ-27 provides a fast and smooth way to facilitate the authorized people entry secured areas and suites well the applications requiring ultra high speed access and medium levels of security. Flap barrier optical turnstile JDYZ-27 is supplied with intelligent infrared sensors providing high detection accuracy to effectively prevent clipping and collision, ensuring the safety of pedestrians. If a person attempts to enter without authorization, a visual or audible alert is triggered, meanwhile, optical flap turnstile gate JDYZ-27 will refuse to open along with the alerts to effectively deny access.

Optical flap turnstilee JDYZ-27 supports single directional or bi-directional access and flexible integrate various access contro device with dry contact output. In addition, flap optical turnstile JDYZ-27 will cancle the access right If pedestrians do not pass through within pre-defined time, and the passing time Is adjustable for different requirements. In case of power failure, the passage will be released automatically for a free access.

Optical Flap Turnstile Features

1. Easily integrates to access control and fire safety systems through dry contact

2. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts

3. High performance and robustness

4. Unique design meets the latest architectural trends

5. Physical security improved with fast double retractable wings for immediate lane closure

6. Quick and smooth motorized retractable wings for bi-directional operation

7. Fast user throughput

8. In case of emergency, the flap turnstile arm will open automatically to allow free access

9. Obstacles automatically open to free the passage

10. Stable and efficient operation with lower noise

Optical Flap Turnstile Applications

Company premises

Power plants

Industrial plants

Government facilities

Stadiums

Airport and port areas

Public transportation terminals

Optical Flap Turnstile Parameters

Housing Material: #304 stainless sheet

Dimension: 1400 x 300 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Channel Width: 550mm

Drive Motor: DC 24V brush motor

Pass Speed: 35~40 persons per minute

Rotating Direction: Bi-directional

Arm drop when power failure: Yes

Open Time: 0.2 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)
