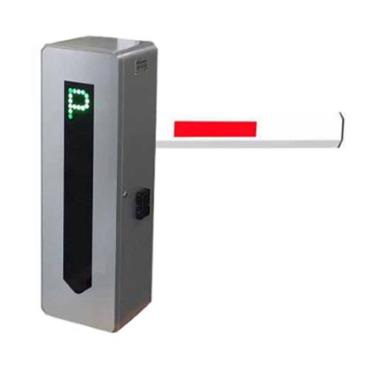

DC24V brushless motor digital automatic car parking barrier gate, automatic vehicle barrier provides adjustable speed 0.6 second up to 6 seconds depending on the settings

Automatic car parking barrier gate JDDZ-10 is an efficinet vehicle access control solution for controlling entry of authorized resident vehicles at safe pre-determined time intervals, coming with compact and stylish design for restrict areas with high traffic flow. The combination of the advanced digital DC24V brushless motor and a planetary gearing system with sinusoidal movement for a soft start and soft stop action, ensures a smooth elevation or lowering of the barrier arm, and avoiding bounce in the end position. On the other hand, car parking barrier JDDZ-10 provides variable speed 0.6~ 6 seconds for different boom length. In general, each boom length is set to a standard operational speed but can be simply adjusted directly from control board to get a faster or slower speeds depending on the requirement.

Automatic Car Parking Barrier Gate Featurers

1. Speed 0.6 second up to 6 seconds depending on the settings

2. Energy saving DC24V brushless motor gearbox

3. Manual operation in the event of power failure

4. Smooth and efficient operation

5. Secure operation with safety devices

6. Possibility of integration with any type of access control systems

7. Slim profile; fits on narrow islands

8. Environmentally durable cabinet

9. User-friendly and optimum accessibility

10.Easy installation and service

Automatic Car Parking Barrier Gate Applications

Private and company premises

Industrial and hospital premises

Tunnels

Motorways

Public facilities

Shopping mall

Automatic Car Parking Barrier Gate Parameters

Power Supply: AC220V/ AC110V±10%, 50/60hZ

Rated Power: 140W

Motor Type: DC 24V brushless digital motor

Motor Speed: 1500RPM

Open Time & Boom Length

1.0~1.2 seconds 2.5 meter straight boom

1.5~2.0 seconds 3.0 meter straight boom

2.0~2.5 seconds 3.5 meter straight boom

2.5~3.0 seconds 4.0 meter straight boom

3.0~3.5 seconds 4.5 meter straight boom

3.5~4.0 seconds 5.0 meter straight boom

4.0~4.5 seconds 5.5 meter straight boom

5.0~6.0 seconds 6.0 meter straight boom

Max 4.5 meter articulated boom

Noise: ≤60dB

Error Action: ≤0.0%

Interfaces: IR sensor, vehicle detector, RS485, open/ close/stop

Output: Relay output, max AC240V, 5A bearable

Life Cycle: 4.5 million times

Work Temperature: -35ºC~60ºC, Relative humidity:≤90%, no condensatio
