CT-3090B-UAV Portable easy to install Anti-Drone UAV 120W Jammer up to 2500m

Anti-Drone UAV portable Jammer

6 Bands, 2 X 10w 5Ghz, Cover 100% Drones UAVs

Range : 1000-2500m Omni Antenna 360 Degree

Pelican Case 1440 + Portable Tripod + Antenna Frame

2.4Ghz 5.8Ghz Vertical+Horizontal Polarization 2 bands Big Omni Antennas

CT-3090B-UAV 6 Band specification:

Big Omni 2 bands Antenna Φ76*620mm

1 5.7-5.9GHz 10W 5Ghz RC ( Vertical Polarization )

2 5.7-5.9GHz 10W 5Ghz RC ( Horizontal Polarization )

Big Omni 2 bands Antenna Φ72*1140mm

3 2.4-2.5GHz 20W WiFi 11.g, b, Bluetooth ( Vertical Polarization )

4 2.4-2.5GHz 20W WiFi 11.g, b, Bluetooth ( Horizontal Polarization )

5 1570-1620MHz 40W GPS L1 + GLONASS L1 Omni Antenna

6 433MHz 20W Remote Control : Omni Antenna

Total : 120W

Jamming Range : Radius 1000~2500 Meters

Cover All 100% Commercial Drones / UAVs

Like DJI Phantom 4 Pro V2.0, Phantom 4, Phantom 3 Professional, Advanced, Standard series, Inspire Series...

Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)

100% Safe VSWR over protection (Isolator) for each modular

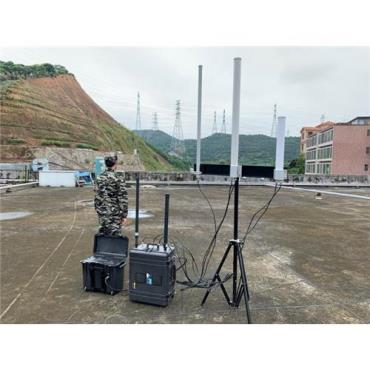

Included Tripod with Antenna’s Frame easy to install on field

Battery: +24V / 20AH LiFePO4 can work 1 Hours

Power supply: AC110 or 220-240V /DC 27V (Battery Automatically Backup If AC Power is dead)

Dimension: 500 x 305 x457 mm (Pelican 1440 Case only ) Weight : 26kg

Working time: Without the time limit, May continue to work,

Antenna : Four External Omni Antennas, Included Tripod with Antenna’s Frame

Package included everything to porteble device be ready for use :

- Main portable jammer unit

- All antennas with packing box

- Tripod with antenna’s frame and cables

2 Years warranty, Neutral packing, OEM Manufacturer :
