CT-6010DDS Full-band DDS digital frequency Anti RCIED Bomb Portable Jammer up to 1km

Transmission power: integrated equipment ≥1000W+,

Each frequency band : ≥ min 100W

Output channel: 10 output channels

Portable RCIED DDS Mobile Phone Pelican Jammer. Direct Digital Synthesizer Technology DDS, RJ485 Protocol. Portable Pelican RCIED, DDS Jammer is a wide-band portable jamming system, designed for Bomb disposal squads, VIP protection, Special Police (S.W.A.T.), military security force, bomb squads, anti-terror units, anti-drug units, border control units, checkpoint personnel, these types of law enforcement personnel who benefit greatly from deployment of any of these best-in-class portable RF jamming solutions. They can conduct the law enforcement process more effectively to reduce the chance that the criminals leak the information.

CT-6010DDS E Europe ( 10 Bands)

20-100MHz: 100W 27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control

100-300MHz 100W VHF Low-power transmitters

300-500MHz: 100W Walky-Talky, 315/433MHz Car Remote Control

758-830MHz: 100W 4G Low LTE

920-965MHz: 100W GSM 900

1800-1880MHz 100W DCS GSM 1800

2100-2170MHz: 100W 3G UMTS

2570-2690MHz: 100W 4G LTE & WiMax

2300-2500MHz 100W 11.b,g + 4G LTE

3400-3800MHz: 50W 5G LTE

TOTAL: 950 W

CT-6010DDS A America ( 10 Bands)

20-100MHz 100W 27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control

100-300MHz 100W VHF Low-power transmitters

300-500MHz 100W Walky-Talky, 315/433MHz Car Remote Control

725-805MHz 100W 4G Low LTE

850-895MHz 100W CDMA 850

1920-1990MHz 100W PCS CDMA 1900

2100-2170MHz 100W 3G UMTS

2500-2700MHz 100W 4G LTE & WiMax

2300-2500MHz 100W 11.b,g + 4G LTE

600-700MHz 100W 5G LTE

TOTAL: 1000W

Frequency will be customized as per the user requirements in 10 bands. Options: GPS L1+ Glonass L1 500-1700MHz, GPS L2 + Glonass L2: 1100-1300MHz, GPS L3+L4, GPS, L5: 80W (Can be no Gap from 20-2700MHz).

Jamming Range: 500-1000 meters

The distance always varied depending on the signal strength, antennas and location.

Adjustable output power for each band

Power supply: AC adapter (AC220V-DC27V or 24V/ 45 Amp) or External Battery

Stand-alone modular design and individual power control.

RJ485 Protocol : Can control all 10 modules by one RJ485 connector (Not like RS-232 needs to

connect each module one by one). One Computer interface control all 8 bands

Each module has one LED show Frequency, ON/OFF Status, Output power

One Main LED to show all 8 bands/modules status: Frequency, Four Windows setting, Output

power, VSWR, Working Voltage, Working current Amp, Temperature

(Do not need Computer to check one module by one module status)

Adjustable the Frequency and Output Power each Band/Channel by Computer

VSWR over protection for each modular.

Working status indicator for each band modular.

Dimension：626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620

Weight: 53 Kg (approximately) just main unit not included antenna & all accessories

Operating temperature: -20℃ ~ +60℃

Humidity: 5% ~ 90%

External Battery B-50AH 27V/50AH LiFePo4 Battery

Pelican Case 1440, 30kg Weight

Work 1 Hour Around

Package contents:

1 main jammer

10 omni antennas 750mm long with spring

2 Antennas frame and cables 3m long

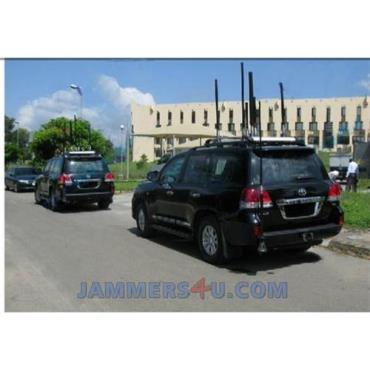

Additional Antennas options : Vehicle frame for Miltary Antennas

External Battery in order option:

B-50AH 27V/50AH LiFePo4 Battery

Pelican Case 1440, 30kg Weight. Work 1 hour

2 Years warranty, Neutral packing, OEM Manufacturer :
