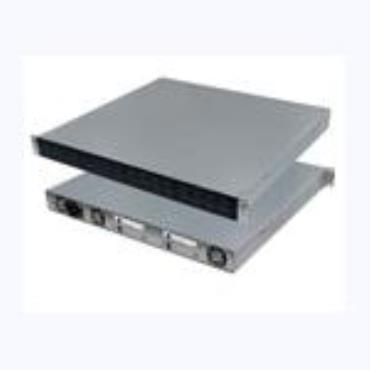

The size of 1U 19-inch rack mount chassis

Designed with USB 3.0 Compliant Hub Controller, TID# 330000003

Multiple transaction translator (MTT) Hub

One TT per downstream port for maximum performance

Four USB 3.0 Upstream Ports and 32 USB 3.0 Down Stream Ports

Provides multiple modes of charging to meet the following specifications:

USB Battery Charging Specification BC1.2

Chinese Telecommunications Industry Standard YD/T 1591-2009

Divider Modes 2.0V/2.7V and 2.7V/2.0V compliant with 1A and 2A Apple mobile digital devices such as iPod?, iPhone? (1A) and iPad? (2A)

Supports Spread Spectrum Clock (SSC)

Built-in 350W AC (100-240V, 50-60Hz) to DC Switching Power Adapter. (PS-00044)

Provides USB 3.0 cable port lock mechanism

Upstream USB 3.0 cable port (Standard B-type Receptacle) lock mechanism

Downstream USB 3.0 cable port (Standard A-type Receptacle) lock mechanism
