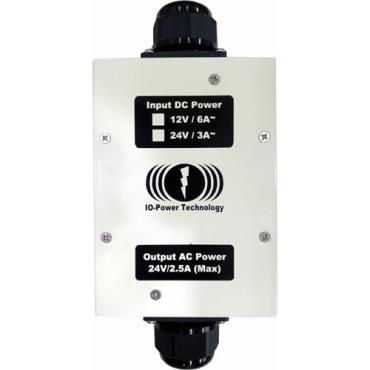

IOP-DAPI-12243A-2 Outdoor Input 12VDC to 24VAC Power Inverter
IO-Power Technology Co., Ltd.
Region: Taiwan
Update: 2019/11/08
Key Specifications
IO-Power IOP-DAPI-12243A-2

Outdoor Input 12VDC to 24VAC Power Inverter

(Special Design for Speed Dome 24VAC Power Solution)

IO-Power IOP-DAPI-12243A-2 is a specially designed outdoor DC to AC Inverter for 24VAC Speed Dome, adopting 12VDC input power, which is different from the usual adapter — input power 100~240VAC, output power 24VAC. It helps the system integrate (SI) easily collocate with 12VDC power source from the Outdoor DC UPS power system and 12VDC power source from the adapter (over 6A). It decreases the power transmission loss from DC to AC, then anther power transmission loss from 110VAC~240VAC to 24VAC (about 15%~30% loss of electricity). Therefore, IOP-DAPI-12243A-2 is especially suitable for green energy power system, such as solar power system and winder power system. The electricity loss it saves makes 30% of cost benefit for the whole power system.

DC to AC Inverter is adopted industrial level of Iron metal thermal protection shell and waterproof dust reached IP67 of mechanism design and the Waterproof and heat-resistant beam head to handle the outside tough temperature at -30°C ~ +70°C to maintain the outdoor system normally working during day and night.

IO-Power IOP-DAPI-12243A-2 adopts 12VDC input power of high current. The output of the conversion output is 60W and the peak power supply 100W maximum, enough for the normal Speed Dome which consumes 10~18W/H, and for the long-distance infrared rays Speed Dome, which consumes 18~35W/H. The 24VAC voltage and 2.5A current (and peak power supply 4A Max) can manage the transient current of Speed Dome which reaches 2~3A to reach the requirements of the Inverter of “Special Design for Speed Dome Power Solution”.

Adopting 12VDC input power can collocate with not only 12VDC power source from Outdoor DC UPS power systems, but also 12VDC power source from normal adapters (over 6A). Therefore, the applications are for 24VAC outdoor surveillance system, 24VAC outdoor emergency rescuing system, 24VAC mobile power supply system, 24VAC outdoor surveillance recording system, 24VAC outdoor public sign and indication system, 24VAC outdoor financial security system, 24VAC elevator security monitoring system, 24VAC fire security system, 24VAC expressway charges trading surveillance system, etc.
