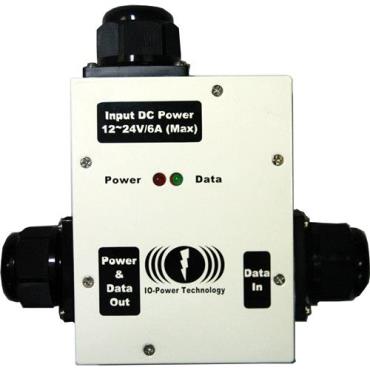

IOP-DPOE-PSP1248-OA Series Outdoor DC to DC Power over Ethernet (PoE) Converter
IO-Power Technology Co., Ltd.
Region: Taiwan
Update: 2019/11/08
Key Specifications
IO-Power IOP-DPOE-PSP1248-OA Series

Outdoor DC to DC Power over Ethernet (PoE) Converter

12V-18W / 24V-36W / 36V-54W / 48V-72W Passive & 48V-30W Standard Mode

(To be completed with online 12~24VDC DC UPS Power System)

IO-Power DPOE-PSP1248-OA series are an outdoor DC to DC Power over Ethernet (PoE) Converter. To respond to outdoor DC UPS power system, the power source is from online outdoor DC UPS system or general 12~24VDC power adapter. Complete with DC to DC PoE, supplying power for the device through Ethernet cable (RJ-45). At the same time, it has the Ethernet cable data transmission ports, so it can transmit the data out of the device.

DC to DC PoE Converter is adopted industrial level of Iron metal thermal protection shell and waterproof dust reached IP67 of mechanism design and the Waterproof and heat-resistant beam head to handle the outside tough temperature at -40°C ~ +70°C to maintain the outdoor system normally working during day and night.

IO-Power DPOE-PSP1248-OA series adopts the compatibility with IEEE 802.3af and IEEE 802.3at, in addition to supporting standard chip communication after the completion of the power over Ethernet (Standard PoE Mode), specially designed to change jump Pin after to improve the design of the output power for power over Ethernet (Passive PoE Mode). The minimum output power is 12V-18W while the maximum output power is 48V-72W for those devices, which different output needs power through PoE. Applications are for outdoor wireless devices, outdoor surveillance system, outdoor emergency rescuing system, mobile power supply system, outdoor surveillance recording system, outdoor public sign and indication system, outdoor financial security system, elevator security monitoring system, fire security system, expressway charges trading surveillance system, etc.

DC to DC Converter adopts IEEE 802.3at, standard 1000Mbps (1GiGa) bandwidth, automatically detecting the data transmission port. It can be applied for IEEE 802.3af 100Mbps Ethernet power supply port and IEEE 802.3at 1000Mbps Ethernet power supply port.
