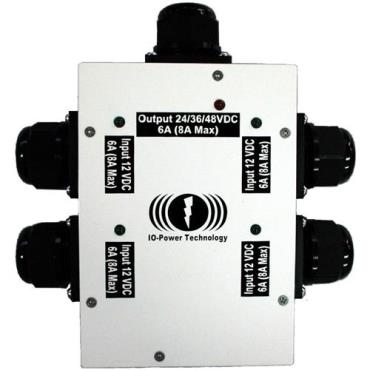

IOP-SCBP-D12O48-1 Outdoor12VDC Series Connection Boost Protector
IO-Power Technology Co., Ltd.
Region: Taiwan
Update: 2019/11/08
Key Specifications
IO-Power IOP-SCBP-D12O48-1

Outdoor12VDC Series Connection Boost Protector

Support Series In-line Boost 48Voltage and Separate Power Supply Protection

The IOP-SCBP-D12O48-1 is a special design for people who need more battery power and high voltage and large current capacity design of system requirements through electrical series booster design pattern, with a separate access to the isolated circuit design, meet the in-line booster function, while avoiding general series in-line boost voltage on the battery caused by injuries, resulting in damage batteries used in series.

The IOP-SCBP-D12O48-1 is outdoor 12VDC series connection boost protector, specially designed multi ports in-line automatic step-up design:

Insert 2 x 12VDC power supply voltage in series, the output voltage automatic step-up 24VDC power supply

Insert 3 x 12VDC power supply voltage in series, the output voltage automatic step-up 36VDC power supply

Insert 4 x 12VDC power supply voltage in series, the output voltage automatic step-up 48VDC power supply

Insert different voltage power supply voltage in series, will automatically output superposition of voltages on the power supply, but should not be more than the total voltage 56VDC.

Series booster design patterns through electricity, IOP-SCBP-D12O48-1 each port to enter 12~28VDC 6A (Instant 8A max), but can not exceed the maximum stack voltage 56VDC. Port input currents up to 6A (Instant 8A max), the total output current of the same series up to 4A (Instant 6A max), output 48VDC * 4A= 192W/H (Instant 6A max up to 48VDC * 6A = 288W/H). Regarding the need to consume a larger outdoor trading system can be truly functioning electricity demand, for example use for indoor and outdoor telecommunications systems, outdoor communications systems, emergency broadcasting system, wireless network system, outdoor surveillance system and outdoor detection system ... , And so on.

Outdoor 12VDC series connection boost protector, in addition to general power series step-up operation applied to outside power supply, especially when the mix of outdoor power systems, separate charge mode with separate input reverse current protection, would not result in UPS power systems battery damage. Even has a size of battery capacity or battery low voltage differences, The IOP-SCBP-D12O48-1 Outdoor 12VDC series connection boost protector, will be able to offer mutual isolation and reverse protection and access protection features such as excessive discharge.
