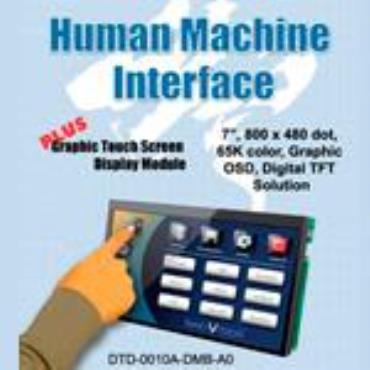

The DTD-0010A-DMB-A0 DMB product demonstrates a complete Digital TFT panel application. It employs an AverLogic AL330 Display SOC, which is used with a separate Graphical OSD chipset to provide superb graphical OSD effects and full menu capabilities. This product supports video input using CVBS and YPbPr.

The display is a 7" Hstar panel with touch panel capabilities, allowing you to manipulate the OSD menu directly on the screen. The OSD can also be controlled with the on-board keyboard or an IR remote control.

Features

* CVBS, YPbPr video input

* NTSC, PAL auto detection

* Con/Bri/Hue/Sat adjustment

* 16M flash for OSD menu images and text library

* UART/IIC interface for external unit control

* OSD programmable blending, fade-in/fade-out, overlap, transparent visual effects

* Graphic OSD menus and effects

* Touch Panel, Keyboard, Remote Control

* Hstar Panel

* Supports 4:3 to/from 16:9 conversion

* Supports TFT Panel from 3.5” to 10.2”

* Supports resolution from 320*240 to 1024*768
