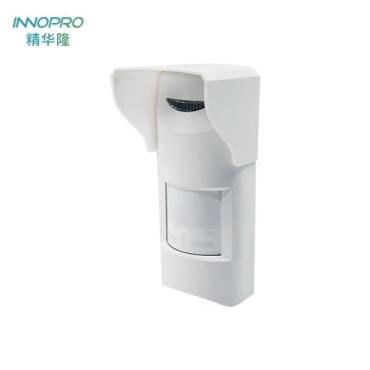

Security Alarm Motion Sensor Detector Infrared Human Wireless PIR Alarm

1. Product size: 180*80*85mm

2. Working voltage: DC 9~16V

3. Working current: ≤30mA

4. Sensing element: dual-element pyroelectric infrared sensor

5. Detection capability: distance 12m (25°C)/angle 110°

6. Microwave frequency: 10.525GHz

7. Alarm output: NC/NO

8. Tamper output: NC

9. LED indicator: ON/OFF (optional)

10. Installation method: wall hanging (outdoor)

11. Installation height: 2~2.4m

12. Mounting bracket: stainless steel bracket

13. Anti-white light level: 6500Lux

14. Temperature Compensation: Automatic Compensation

15. Working temperature: -10℃～55℃

16. Working humidity: ≤95% (no condensation)

17. Set the terminal, easy to connect

18. Waterproof grade IP65, with anti-disassembly function on the back

19. Automatic temperature compensation, super anti-false alarm ability

20. Optional alarm indicator switch to enhance product concealment

21. Alarm output NC/NO optional, adapt to different control hosts
