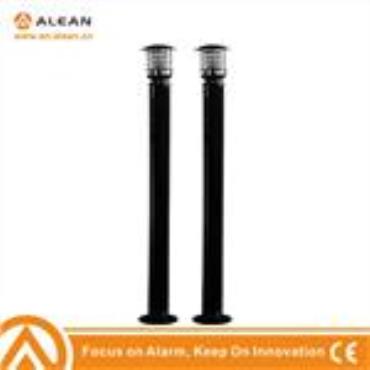

INFRARED FENCE

•  Model ABL10-854 ABL30-854 ABL60-854 ABL100-854 ABL10-1206 ABL30-1206 ABL60-1206 ABL100-1206
•  Outdoor Range 10m 30m 60m 100m 10m 30m 60m 100m
•  Height (without lamp) 85cm 120cm
•  Beams 4 6
•  Model ABL10-1508 ABL30-1508 ABL60-1508 ABL100-1508 ABL10-18510 ABL30-18510 ABL60-18510 ABL100-18510
•  Outdoor Range 10m 30m 60m 100m 10m 30m 60m 100m
•  Height 150cm 185cm
•  Beams 8 10
•  Detection method Simultaneous interruption of adjacent 2 infrared beams
•  Beam frequency 2 channel ( A and B )
•  Power Supply DC11~18V
• Current Consumption 50~90mA max
• Response speed 40msec
• Alarm Output Switch ouput signal, NO, NC optional
• Tamper Switch NC, opens when cover removed
• Operating Temperature     -25℃ to +55℃
• Environment Humidity 95% max
• Alignment Angle Horizontal 180°(±90°), Vertical unadjustable
• Protection Degree IP65
• Material PC engineering plastic, Aluminum housing
