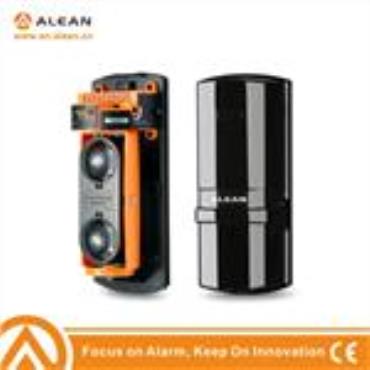

2015 NEW waterproof photoelectric beam sensor for home security systems

Name: Home security systems photoelectric beam sensor

Parameters:

Model

ABT-40

ABT-60

ABT-80

ABT-100

Detecting distance (outdoor)

40m

60m

80m

100m

Detecting distance (indoor)

120m

180m

240m

300m

Detection method

Simultaneous interruption of 2 infrared beams

Response speed

12-250msec adjustable

Alarm output

Switch signal output(NO/NC)

Power and Voltage

DC12~24V; AC11-18V

Current consumption

100mA MAX

Operating temperature

-25℃-55℃

Humidity

95% MAX

Tamper

NC. 1B contact output,DC26V/0.5AMax.

IP degree

IP 65

Exterior dimension

80mm*77mm*195mm

Weight

950g
