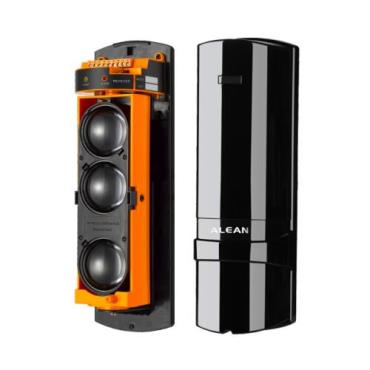

ALEAN Photoelectric IR Beam Detector-Triple Beam Sensors 50-250M.

Default Model NO: ABE-100

Brand: Alean

Certificate: CE/FCC/RoHS Approved.

ABE Series :

Model NO Number of Beams Outdoor Detection Distance Indoor Detection Distance

ABE-50 3Beams 50Meters 150Meters

ABE-100 3Beams 100Meters 300Meters

ABE-150 3Beams 150Meters 450Meters

ABE-200 3Beams 200Meters 600Meters

ABE-250 3Beams 250Meters 700Meters

We also have Dual Beams, Quad Beams Detector for optional, if need more details, please mail to me: laura#alean.cn

change the # to @

Features:

Precision optical focusing lens technology and bus control technology

Outdoor triple beam gain self-regulation,adaptable to terrible weather such as rain fog and snow weather

Single and dual beam models with ranges up to 250''''''''''''''''''''''''''''''''

Speciall filter lens and circuit, anti-strong light jamming

Suitable for outdoor installations

Lightning proof circuit design

Easy alignment features reduce installation time

High-power infrared receiver on the tube, low-power digital frequency processing technology

Horizontal/vertical optical angle can be easy to adjust

Technical parameters:

Model

ABE-50

ABE-100

ABE-150

ABE-200

ABE-250

Distance(outdoor)

50m

100m

150m

200m

250m

Distance(indoor)

150m

300m

450m

600m

750m

Detection method

Simultaneous interruption of 3 infrared beams

Response speed

50-700msec

Number of beams

3 beams

Alarm output

Switch signal output(NO/NC)

Power and Voltage

DC12~24V ; AC11-18V

Current consumption

100mAMax.

Temperature

-25℃—55℃

Humidity

95% MAX

Tamper

NC. 1B contact output,DC30V/0.5AMax.

Exterior dimension

90mm*100mm*270mm

Weight

1.9kg
