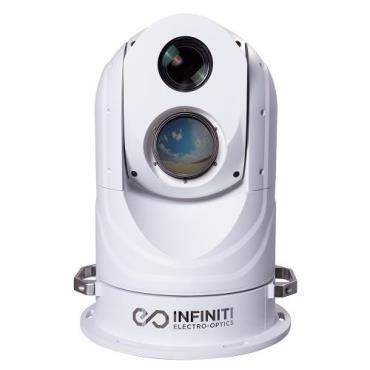

Neptune is a rugged military grade IP 67 gyro stabilized multi sensor thermal & visible/NIR payload for up to 20km of vehicle detection at night using a 19~275mm MWIR cooled thermal camera. Not only does the Neptune boast ultra logn range thermal it also comes with up to 49x optical zoom HD VIS/NIR ultra HD 4k camera with integrated fog filter.

Key Features:

› Long-Range Day/Night PTZ Camera System

› 2MP, 4MP or 8MP High-Resolution CMOS Sensor

› HD Lens with 22X, 30X, 36X, 38X or 49X Optical Zoom

› Optical Field of View Options ranging from 70° to 1.2°

› ZLID™ for up to 2km Night Vision in Complete Darkness

› Thermal Imaging for Long-Range Detection up to 20km*

› Designed for Operation in -30°C to +60°C

› Rugged IP67 Weatherproof Housing

› High Resolution Pan/Tilt for Smooth Operation

› Control via RS485/Pelco-D or Octagon Bridge/API

› Integrated Optical Fog Filter on select models

See Further with Thermal

An optional thermal imager lets you see further than

any other night vision technology. Unlike traditional

visible cameras, thermal imaging uses heat rather than

light to see objects. Humans, animals, and vehicles

are hot in contrast to most backgrounds, making

trespassers hiding in shadows or bushes easy to

spot. Thermal images are also unaffected by bright

light and have the ability to see through atmospheric

obstructions such as smoke, dust, and light fog. This

makes it an ideal technology for many applications,

including surveillance and security, search and rescue,

fire, marine and land navigation, wide area situational

assessment and much more

12μm VOx Thermal Imager

The Neptune’s LWIR sensor options use a

cutting-edge 12μm VOx uncooled sensor, giving

the camera a narrower field of view without

changing the lens. The smaller 12μm pixel pitch

achieves a 40% further range than 17μm sensors

or 200% further range than older 25μm sensors.

The high-sensitivity sensor detects differences

in temperature as small as ±0.05°C, and its

no‑maintenance VOx design, unlike other

thermal cores, is self healing and resistant to

solar damage.

275mm MWIR Cooled Thermal

The Neptune’s longest range thermal option is

our 14X zoom 19-275mm cooled MWIR thermal

module with detection distances of up to 20km

and a 28.4°–2.0° Horizontal FOV.
