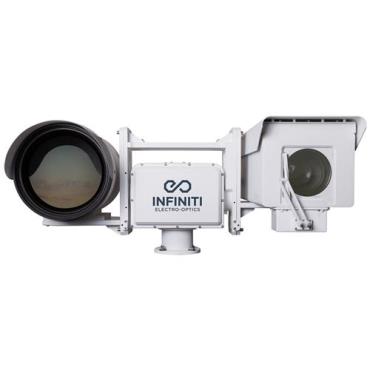

The Vega comes equipped with a precision engineered 15.5–2075mm IR-corrected zoom lens with motorized HD doubler, offering an incredible 135X zoom range from 20.6° through to a very narrow 0.15° FOV when paired with the 1/2.8" sensor. That''''s equivalent to a “full-frame” DSLR camera using a 13,500mm lens. Infiniti’s zoom optics are built with the highest quality Japanese fluorite ELD low

dispersion glass, and the integrated rapid auto focus allows long range recognition and identification of targets without operator intervention.

The lens also incorporates a motorized fog filter that is used with the camera’s monochrome mode and de-haze image processing to see through fog, smoke, smog and haze that render standard optical cameras unusable. Infiniti’s HD Zoom camera is a perfect synergy between precision craftsmanship, state of the art sensor hardware and

the latest image processing for unparalleled range and performance

1200mm Germanium Zoom Lens

The Vega boasts a 115~1200mm f/4.0 germanium autofocus zoom lens for long-range detection of thermal targets. It offers a 6.4° to 0.61° field of view for both wide-angle viewing as well as extreme long-range detection. The large diameter f/4.0 lens collects nearly twice as much thermal energy as a smaller f/5.5 lens. Our lens also integrates auto focus for fast sharp, high-contrast images, allowing for vehicle detection up to 50km (based on DRI standards*).

Low Backlash Military-Grade Positioner

The Vega uses a weapons-grade positioner designed for military applications and is ruggedized to withstand shock and vibration for use on tanks and navy vessels. This pan/tilt delivers high torque to handle large payloads up to 100kg with achievable speeds from

0.001°/sec to 115°/sec and an accuracy of 0.05°. It features smooth manual control with configurable acceleration and optional GPS positioning for automatic slew-to-cue tracking when used with Video Analytics, VTMS systems, Radar, AIS and weapon systems. The integrated multi-axis gyro stabilization uses a high-rate MEMS gyro in combination with the pan/tilt to mechanically stabilize the payload, reducing the effects of vibration, oscillation, pitch and roll for operation on tanks, vessels, masts and assault vehicles.
