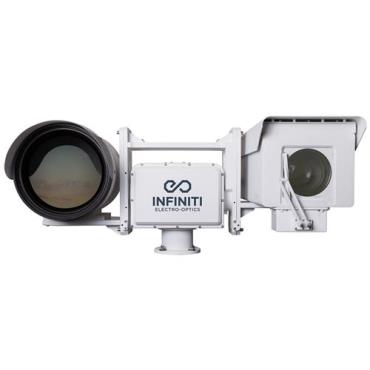

The Vega is a long range multi-sensor EO/IR camera system with a 135X visible day/night camera, long-range HD thermal infrared zoom, and optional ZLID NIR illumination with LRF. This multi-sensor payload enables the Vega to provide high resolution imaging in virtually any environment from heavy fog to complete darkness. Designed for accurate positioning of weapons systems, the pan/tilt unit meets and exceeds MIL-STD-810 F military ratings for shock, vibration, temperature and dust/water ingression. This makes the Vega the ultimate long-range camera system for 24/7 situational awareness and long-range recognition and identification of targets.

Key Features：

Ultra Long-Range Military Grade Multi-Sensor PTZ Surveillance System

Day/Night 1080p HD IP ONVIF 1/2.8" CMOS Sensor

135x 15.4–2075mm HD IR-Corrected Zoom Lens

20°–0.15° Horizontal Field Of View Results in a 135X Zoom Range

Autofocus, Motorized Fog/Parasitic Light Filter & Temperature Calibration

Image Enhancements: WDR, HLC, EIS, 3DNR, Fog/Haze Reduction

1280×1024 MWIR Infrared 10μm, 30Hz Real-Time X-Hot Cooled Thermal Imager w/HD-SDI

10μm Pixel Pitch Provides 50% More Pixels on Target than 15μm Sensors

115–1200mm ƒ4.0 Auto-Focus Germanium Thermal Lens (6.4–0.61° HFOV)

25,000+ Hour Lifetime Cyrogenic Cooler

Up to 30km of Human Detection and 55km of Vehicle Detection*

MIL-STD-810F, -50°–+65°C and IP66/67 with Anti-Corrosion Finish

Elliptical Synchronous Drive, Gyro-Stabilized Heavy Duty Pan/Tilt

Endless 360° Rotation Pan/Tilt with Speeds from 0.001–110°/s and Up to  0.00036° Resolution with Zero Backlash

1535nm 23km Rated LRF with 50~250mm Range Accuracy usingInGaAs Detector

X-Hot Cooled Thermal Core

The cooled thermal camera is equipped with Infiniti's new

X-Hot MWIR thermal sensor, enabling 24/7 imaging that relies on heat to allow it to see in complete darkness as well as through

smoke and light fog. The X-Hot is revolutionary technology that is based on a superlattice design which runs at significantly higher temperatures than InSb and MCT. This extends cooler lifetime and minimizes

required maintenance. A core sensitivity of 0.025°C, as well as its advanced DICE (Dynamic Image Contrast Enhancement) processing, defective pixel replacement, gaussian noise reduction filter, and automatic gain control (AGC) come together to create an optimized image with maximum clarity and contrast.
