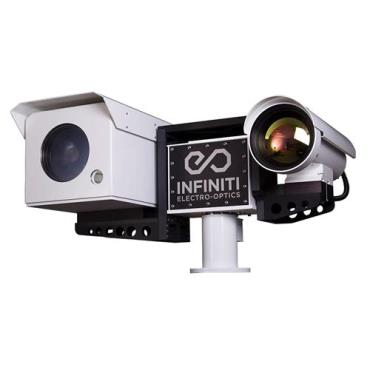

The Viper is a revolutionary multi sensor PTZ camera boasting a long-range

128X visible day/night camera, long-range 50+km thermal infrared zoom, and

optional ZLID NIR illumination with LRF. This multi-sensor payload enables

the Viper to provide high resolution imaging in virtually any environment from

heavy fog to complete darkness. Designed for weapons systems pointing and

accuracy, the pan/tilt unit and enclosure meets and exceeds MIL-STD-810F

military ratings for shock, vibration, temperature and dust/water ingression.

This makes it the ultimate long range camera system for 24/7 situational

awareness and long-range recognition and identification of targets.

Key Features:

›› Ultra Long Range HD military-grade EO/IR PTZ surveillance system

›› Day/Night 1080p HD IP ONVIF 1/2.8" or 1/1.8" CMOS sensor

››128X 2050mm Zoom Lens 19°– 0.15°

›› Auto focus & motorized fog/parasitic light filter with auto temperature

optimization

›› Image enhancements: WDR, HLC, VLC, ROI, EIS, 3DNR, Fog/Haze, ABF

›› 1280×720 10μm, 30Hz real-time MCT cooled thermal imager with HD-SDI

›› 10μm pixel pitch provides 50% more pixels on target than 15μm sensors

›› 100–1200mm ƒ/4 autofocus germanium thermal lens (7.3~0.61° HFOV)

›› 25,000+ hour rated rotary stirling cycle cooler

›› Up to 30km of human detection and 55km of vehicle detection (DRI)

›› MIL-STD-810F rated, -50°–+65°C and IP66/67 sealed enclosure with anticorrosion

UV stabilized finish

›› Nitrogen pressurized thermal enclosure

›› Elliptical Synchronous Drive, gyro-stabilized heavy duty pan/tilt

›› Endless 360° rotation pan/tilt with speeds up to 50°/s and 0.00026°

resolution with zero backlash

›› 1550nm 20km rated LRF with 6ppm continuous measuring rate

Infiniti Electro Optics custom builds EO/IR long range PTZ Multi sensor thermal and visible cameras and has a variety of off the shelf models with their Integrated motorized optical Fog/Haze filter. Their motorized filter when combined with their long range optimized surveillance sensor provides up to 6x the resolution of thermal, 10x the distance of thermal and images on par with SWIR imaging because they integrate optical filters with DSP on chip real time image processing.
