● The memory capacity supports 40,000 cardholders and 40,000 events.

● Built-in flash memory, data can be saved more than 1 year after power off.

● Built-in RTC battery, Real-Time-Clock will keep operating more than one year after power off.

● Standalone operation & setting function; Supports to add unrestricted cardholders

● Supports entry modes through card swipe or card swipe with Pin code.

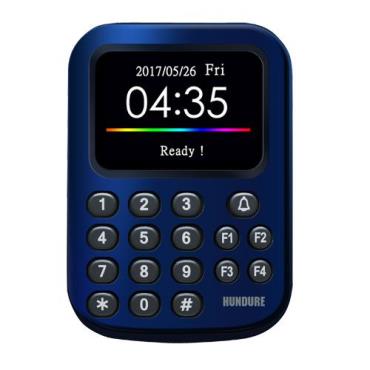

● Color LCD display graphic menu : Icons for user, parameter setting, system

setting,communication setting and device information

● Casing tamper switch and door ajar alarm.

● Provides function keys and color 2.8" LCD display texts in large size

● Unique ID or Block read format supported and programmable key value. (HAC-100PM)

● Provides 256 groups of time schedules; Each group of time schedule includes a whole week (7

days) time schedules ; Each day allows 8 time schedules settings

● Supports conditional unlock door schedules; Able to choose one time schedule as a conditional

unlock schedule; Programmable whether apply conditional unlock schedules on holiday and

whether apply First Card rule to conditional unlock schedules.

● Able to connect T2/W26 slave reader and supports various decode setting

● Settable slave-reader''''s time schedules that needs to check password or unrestricted

● Connecting a slave reader to have the Anti-Passback function for single door

● Built-in TCP/IP communication interface for connecting to PC

● Provides function keys for access control, duty shift settings and display cardholder''''s name

after card swipe

● Memory buffer full warning. When memory capacity reaches 90%, it will make a warning sound

to alert the system administrator for data collection

● Settable whether to store invalid card records

● Blacklist and Duress setting function. When door opened in an emergency situation, the

controller will send a signal to control center at the same time for tracing and rescue.

● Provides 32 working shifts and 32 siren output. LCD will display current shift and the device

sound a siren according to the settings. (Need to work with ACU-30)

● Provides two groups of holiday setting; each holiday group supports 100 holidays

● Keypad lock-down schedules; Under these time schedules, the keypad is locked but allows

temporarily press keypad under the condition that needs to enter password

● Provides card re-swipe check function and the card re-swipe check time (Sec.) setting

● Adjustable Push Button、Door Sensor mode (NO/NC) and door sensor detection time

● Supports remote door unlock
