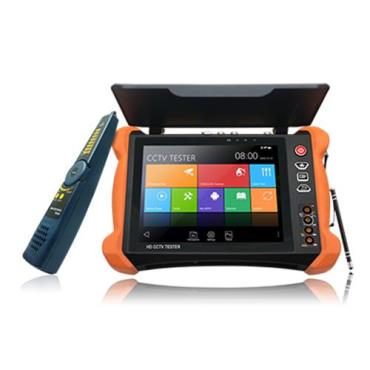

Newest 8 inch 8MP AHD TVI CVI SDI CCTV camera tester with HDMI Input (60fps)/Output(30fps)

Item:X9-MOVTADHS Top MODEL



• New -8 inch retina touch screen, 2048*1536 resolution
• New- H.264 & H .265 ,4K video display via mainstream
• New- 8MP TVI test,3840 x 2160P 15 FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu*
• 5MP AHD test, 2592 x 1944P 12.5/20FPS,4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu*
• 8MP CVI test,3840 x 2160P 12.5/15 FPS, 4xzoom ,video record and playback ,coaxial PTZ control and call camera OSD menu*
• HD SDI/EX-SDI camera test, support 1080P 25/30/50/60 FPS*
• New- Rapid video, just by one key to detect all network cameras and auto display
• Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report
• New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
• Cable tracer, search BNC cable, network cable and telephone cable from the mess cables
• Improvement cable tester, UTP cable, telephone cable etc order and connectivity test
• New- HDMI out , support 4K
• NEW- Anti-sunlight board,help shade the eyes of engineers from the glare of sunlight.
• New- HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display image ,record and snapshot
• New- CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable
• New- Customers self update software, you can install apps with android version ,such as Skype, wechat etc
• ONVIF camera test, support 4K, Network PTZ controller (ONVIF)
• Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
• New- 4K video files and MKV/MP4 media files play
• PoE DC48V power output, Max power 24W,12V /3A power output/5V 2A power output, as a power bank
• 8GB SD card including
• IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address
• Video level meter, Video PEAK lever, SYNC level, COLOR BURST measurement
• Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
• POE voltage measurement, PING test ,IP address scan, port flashing etc
• 7.4 V /7000mAh Lithium Ion Polymer Battery, after 6-7 hours charging , working time lasts 16 hours
