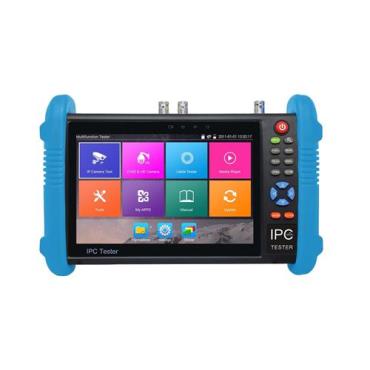

IPS 7 inch TFT-LCD 8MPTVI ,4MP CVI .4MP AHD CCTV test monitor with touch screen ,1280*800 resolution with HDMI input

2.LCD screen with brightness/contrast/color saturation adjustment

3.Built in Wi-Fi

4.ONVIF and customized IP cameras

5.ONVIF IP camera test, support 2592*1520

6.8GB SD card including

7.Test H.264/MPEG4/MJPEG IP cameras

8.Video image magnification enables detailed viewing

9.HDMI signal output, supports 1080p

10.Analog camera image display, auto adapts and display NTSC or PAL video formats

11.Supports RS232/RS485, Rate 600 - 115,200bps adjustable

12.AHD/CVI/TVI camera test. snapshot ,video record and playback ,zoom, support 1080P

13.HD-SDI camera tes

14.IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

15.Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera.

16.Hik test tool app can auto-identify inactivated hikvision camera,

17.DH test tool app is design for Dahua Camera image test, support modify IP, user name and password etc parameters.

18.Snapshot and save images as JPG files in an SD card, video record and playback

19.Support mobile client of the IP camera

20.Display real resolution of the IP camera images

21.PTZ controller ,Photograph, Video record, Record playback

22.Color bar generator, analog video color bar and testing image output

23.POE voltage test, PING test ,IP address scan, port flashing etc

24. DC 48V PoE power output, supplies temporary power for PoE cameras

25.12V /2A power output

26.5V 2A power output, as the power bank

27.Audio input and output test

29.7.4V Lithium polymer battery ,5800mAh,after charging 7~8 hours ,working time last 10 hours
