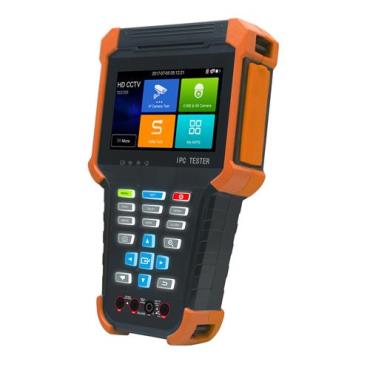

4 inch all in one cctv tester for 8M TVI CVI AHD IP camera test

● 4 inch IPS touch screen, 800*480 resolutions

● H.265 & H .264 IP, 4K video display via mainstream

● 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *

● 8MP AHD test, 3840 x 2160P ,2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

● HD SDI/EX-SDI camera test, support 1080P 50/60 FPS *

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● IP and analog display image at the same time

● IPC TEST (Non-ONVIF test) ,HIK test tool (Hikvision camera),DH test tool (Dahua camera)

● CVBS camera test, PTZ controller

● DC12V/3A power output

●Rapid video, just by one key to detect all network cameras and auto display

●Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Other Functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● POE & power information, DC12V& PoE power and voltage output /input measurement

● Tester Play: Tester, android version mobile phone and PC display at the same time

● HDMI signal input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p record and snapshot *

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Customers self update software, you can install apps with android version

— 8GB SD card including

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

●Digital Multi-meter: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement

● 7.4 V /4000mAh Lithium Ion Polymer Battery, after 3~4 hours charging, working time lasts 9~10hours
