2) Low power consumption, working time lasts 11 hours

3) LCD screen brightness/contrast/color saturation adjustable NTSC/PAL auto adjust

4) AHD camera image display, Support AHD 2.0 VERSION, 720p 25/30fps, 1080p 25/30fps, camera OSD menu control over coaxial cable

5) Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful images).

6) LED Flashlight.

7) HD coaxial control, PTZ control, color bar generator shortcut key.

8) F1, F2 user-defined key

9) Ping test, PING is the most conventional network debugging tools; it is used for testing if the connected IP camera or other network equipment''s Ethernet port is working normally and the IP address is correct.

10) IP address scan The IP address scan can quickly search for connected IP cameras or another network device IP address.

11) POE Voltage tests the PoE voltage from a PoE switch. The unit will clearly display the voltage for each wire in an Ethernet cable. 12) Port Finder，it will enable the installer to easily and quickly find the connected port for an Ethernet cable.

13) Link monitor check if the new setting IP address is occupied.

14) PTZ control and PTZ protocol analysis

15) Cable test, Test LAN cable or telephone cable, UTP cable etc, cable type and the sequence of wires will be displayed

16) Support more than 30 protocols, such as Pelco-D, Pelco-P, SAMSUNG.

17) Support RS232/RS485,rate 600 ～ 115200bps adjustable

18) Built in Lithium Ion Polymer Battery（3.7V DC 3000mAh ）

19) Image display and data control integration

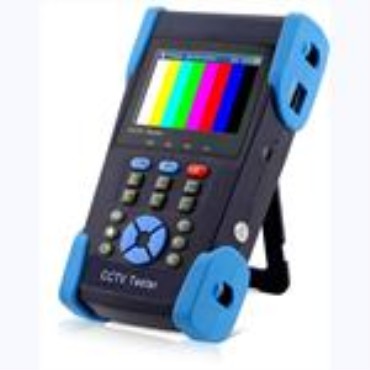

20) Handheld HD coaxial tester, easy to carry and operation.
