Product Size： 1400*185*1020mm

Material： SUS 304 stainless steel

Thickness： Top:1.5mm+body1.2mm

Passage Direction： Single directional/Bi-directional

Passage Width Standard: 600mm (customizable:600~900mm)

Sensor： 4 pairs of active infrared intrusion detector

Throughput Rate： 25~30p/m

Reaction Time： 0.2S

Driving Voltage： DC24V 6.25A

Working Temperature： -20~+70℃

Motor： Brushless DC Motor

Indication： LED direction indication

Acoustic Alarm： Buzzer Alarm

LED： Triple Color LED

Features:

1 Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2 Real-time faul self-detect and alarm indication ensure system safe operation and facilitating maintenance and operation.

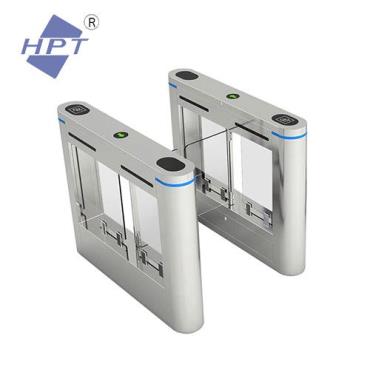

3 The swing barrier has LED direction indication guiding passenger to entry and exit.

4 Light and sound alarm indication function, preventing illegal entry or irregular passing.

5 Powerful online intelligent control mode, facilitating you:

a. To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.

b. To set up operation mode for passage entry and exit.

c. To select a reasonable normally open or close mode, to divert the flow of passengers effectively.

6 The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.

7 The gate has standard input/output port, facilitating the integration of the system and the other equipment, to realize remote control management.

8 After reading card, if the passer don't pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.

9 Suitable for indoor or outdoor

10 Bi-directional passing or single way passing.
