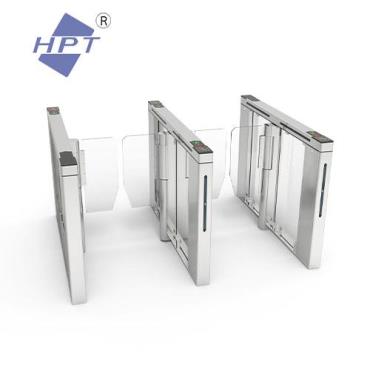

Product Size: 1500*100*1000mm

Material: SUS 304 stainless steel

Thickenss: Top:1.5mm+body1.2mm

Passage Direction: Single directional/Bi-directional

Passage Width Standard: 600mm (customizable:600~900mm)

Sensor: 4 pairs of active infrared intrusion detector

Throughput Rate: 40p/m

Reaction Time: 0.2S

Driving Voltage DC24V 6.25A

Working Temperature: ·-20~+70℃

Motor: Brushless DC Motor

Mechanism: Brushless Speed Gate Mechanism

Back up power: Supercapacitor（12V/3A)

Indication: LED direction indication

Acoustic Alarm: Buzzer Alarm

LED: Triple Color LED

FREATURES:

1. HPT’s AG-TX65151002 has multiple working modes.

2. The whole system operation is stable, and has fault auto-inspection and alarming reminder.

3. The turnstile has anti-rushing function. It's arms will lock automatically if the gate opening signal is not received.

4. The gate has anti-collision function. The turnstile arms will automatic rebound with little force when it bumped into something or the motor will stop working automatically within the rule time when the tursntile swing arm hindered.

5. The speed gate turnstile can automatically open when the power is outage under the emergency status to meet fire protetion passage requirements. It can close the gate automatically after power-on again.

6. It equips with LED passing indicator and alarm buzzer. If unauthorized entrance occured and the gate will issue continuous alarming signal.

7. The speed gate has auto swing arm positioning function. The system will automatically cancel the passing authorizations if visitor did not pass within ruled time.

8. The speedlane gate has unified and standard peripheral interface which is compatible with various reading devices including: IC card reader, ID card reader, scanning module, face module, fingerprint module , and achieve management and control.
