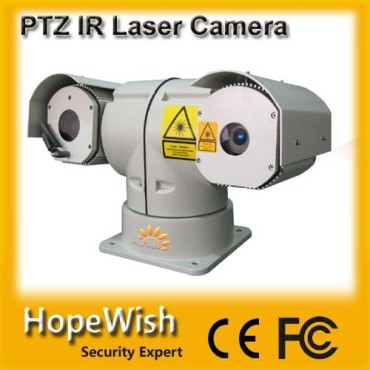

Model BRC1930

Detection Day: 800m

　 Night: 300m

Sensor 1/2.8'''' B&W Sony CCD, 2.1 MP, 1920X1080, automatic ICR switch

Encoding Video compression: H.264, code stream 32k～16Mbps,support dual stream, the heart, smart restructuring, electronic shutter, white balance, 3D DNR, DWDR, automatic exposure, support SD card, motion detection, mask alarm

Image setting Lightness, contrast radio, saturation

Lens 4.3～120mm，30 optical zoom

F1.6～F5.0

FOV 65°～2.3°

Min.Illumination 0.005lux B/W0.05lux Color/

Consumption 5W，808nm ,NIR

Laser lens 30mm F1.0 Fast lens，GHT-II homogenizing

Laser angle 2°～50°

Angle control DSS digital illumination control，30ms fast track response, min 0.1° illumination zooming, manual/automatic

Optical axis aiming 0.01°SLM automatic axis automatic aiming and locking ,reserved external interface, maintaining without take out the case

Pan rotation 0°~360° continuously

Tilt rotation -90°~+90°

Rotation speed Pan: 0°~100°/s，Tilt: 0°~80°/s

Preset 128

Line scan 3 path(User could set up the starting point, destination and scanning speed)

Patrol 6 path(each path have 16 point, staying time is adjustable)

Customized function Customizable privacy shade, 3D box chosen magnification

Interface RJ45，10M/100M adaptive Ethernet，TCP/IP，RTP/RTCP，HTTP

Compatibility Support ONVIF,GB/T28181

Heat/demisting/ wiper Yes

Laser switch Auto/manual

Ingress protection IP66，anti-lighting，anti surge
