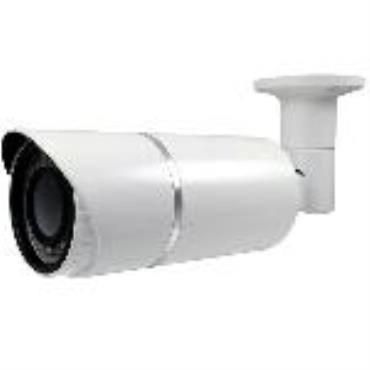

Hi Sharp HS-TVI829V HDTVI Middle Distance IR Camera
HI SHARP ELECTRONICS CO., LTD.
Region: Taiwan
Update: 2015/11/03
INQUIRY
Key Specifications
Feature：
• HDTVI 1080P
• HDTVI output
• Vari-focal lens: 7~22mm
• 3DNR / 2DNR
• Built-in IR Cut Filter, accurate focus for Day & Night.
• Optional: OSD cable.
• High video quality on HD 1080P.
• Transmit video signal, audio signal and dual-way data communication signal over one coaxial cable.
• HD video transmission without video quality loss & delay.
• Extremely long transmission distance.(300M)
• The same connection structure as original analogue system without cable (Coax / UTP) changing
Specifications：
Pick up device |
1/3” CMOS : 2.0 Mega |
Resolution |
1920(H) x 1080(V) @ 25 / 30FPS |
Lens Type |
Vari-focal lens: 7~22mm |
Synchronization |
Internal |
Scanning System |
2:1 Interlace |
Electronic Shutter |
Auto / 1 / 60 (1/50) ~1 / 50,000 sec / FLK |
Min. Illumination |
0.04 lux color / F2.0 (50IRE) / 0 Lux IR ON |
Video Output |
HDTVI |
IR Cut |
Yes |
IR Distance |
50M~60M |
Video Output |
1.0 Vp-p / 75 ohm composite |
Operating Temperature |
-10℃ ~ 50℃ (14℉ ~ 122 ℉) |
Storage Temperature |
-20℃ ~ 70℃ (-4℉ ~ 158℉) |
Dimension |
78.5(W) x 120.2(H) x 265.2(D) mm |
Weatherproof |
IP66 |
Coaxial Cable Transmition Distance (3C/5C) |
300 / 500 M |
Twisted Cable Transmition Distance |
300 M |
