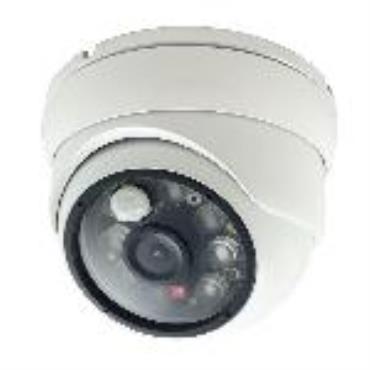

Hi Sharp HS-TVI821W  HD TVI Anti-Crime Smart Dual Light LED Camera
Hi Sharp HS-TVI821W HD TVI Anti-Crime Smart Dual Light LED Camera
HI SHARP ELECTRONICS CO., LTD.
Region: Taiwan
Update: 2015/11/03
INQUIRY
Key Specifications

Feature:
• HDTVI 1080P
• HDTVI output
• Board lens: 6mm
• 3DNR / 2DNR
• Built-in IR Cut Filter, accurate focus for Day & Night.
• Optional: OSD cable.
• Smart camera supported motion and PIR detectionsystem with white light and IR LED.
• Unlike other general IR cameras which can onlypresent B/W image at night, exclusively design as a motion detection system to activate the white light LED within 3M~7M camera lens range distance in color image, in the other hand when IR is ON, shows B/W image only.
• Power saving control, also it can be an auxiliary lighting and warning purpose.
• Installation Field: Basement / Underground parking / Factory / Lane / Stairs / Passage / Courtyard / Enclosure.

Specifications:

Pick up device1/3” SONY CMOS : 2.0 Mega
Resolution1920(H) x 1080(V) @ 25/30 FPS
Lens TypeBoard Lens : 6mm
SynchronizationInternal
Scanning System2:1 Interlace
Electronic ShutterAuto 1 / 60 (1 / 50) ~ 1 / 50,000 sec / FLK
Min. Illumination0.04Lux ( F2.0 , AGC ON)
Video OutputHDTVI
White light Distance<30M
White Light Trigger8Lux
Motion Detect Rrange3M
Motion DetectLight change / Picture change
PIR detect range7M
PIR detectTemperature
3-AxisP-T-T (Pan-Tilt-Twist)
IR CutYES
IR Distance40M
Video Output1.0 Vp-p / 75 ohm composite
Power SourceDC12V ± 10% / 1A
Operating Temperature-10℃ ~ 50℃ (14℉ ~ 122℉ )
Dimension119(Diameter) x 85(D)mm
WeatherproofIP66
Coaxial Cable Transmition Distance (3C/5C)300 / 500 M
Twisted Cable Transmition Distance300 M
