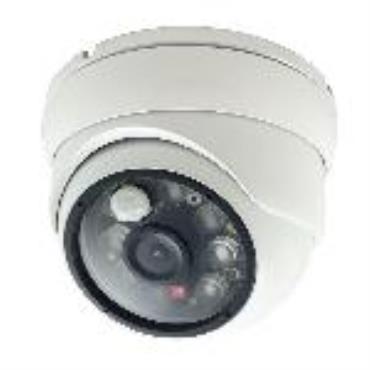

Hi Sharp HS-AHD721W AHD Anti-Crime Smart Dual Light LED Camera
HI SHARP ELECTRONICS CO., LTD.
Region: Taiwan
Update: 2015/11/03
INQUIRY
Key Specifications
Features：
• AHD 720P
• AHD or 1280H Video Output
• Board lens: 6mm
• 3DNR / 2DNR
• Built-in IR Cut Filter, accurate focus for Day & Night.
• Smart camera supported motion and PIR detectionsystem with white light and IR LED.
• Unlike other general IR cameras which can onlypresent B/W image at night, exclusively design as a motion detection system to activate the white light LED within 3M~7M camera lens range distance in color image, in the other hand when IR is ON, shows B/Wimage only.
• Power saving control, also it can be an auxiliary lighting and warning purpose.
• Installation Field: Basement / Underground parking / Factory / Lane / Stairs / Passage / Courtyard / Enclosure.
Specifications：
Pick up device |
1/3” SONY CMOS : 1.3 Mega |
Resolution |
1280(H) x 720(V) @ 30FPS |
Lens Type |
Board Lens : 6mm |
Synchronization |
Internal |
Scanning System |
2:1 Interlace |
S/N Ratio |
More than 55 dB(AGC OFF) |
Electronic Shutter |
Auto 1 / 60 (1 / 50) ~ 1 / 50,000 sec / FLK |
Min. Illumination |
0.04Lux ( F2.0 , AGC ON) |
Video Output |
AHD or 1280H |
White light Distance |
<30M |
White Light Trigger |
8Lux |
Motion Detect Rrange |
3M |
Motion Detect |
Light change / Picture change |
PIR detect range |
7M |
PIR detect |
Temperature |
3-Axis |
P-T-T (Pan-Tilt-Twist) |
IR Cut |
Yes |
IR Distance |
40M |
Video Output |
1.0 Vp-p / 75 ohm composite |
Power Source |
DC12V ± 10% / 1A |
Operating Temperature |
-10℃ ~ 50℃ (14℉ ~ 122℉ ) |
Dimension |
119(Diameter) x 85(D)mm |
Weatherproof |
IP66 |
Coaxial Cable Transmition Distance (3C/5C) |
300 / 500 M |
Twisted Cable Transmition Distance |
300 M |
