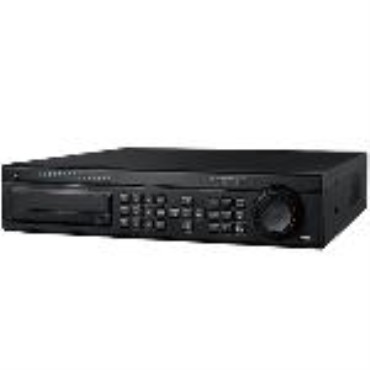

Hi Sharp HS-NVR620P 4 / 8 / 16CH Setup Free NVR
HI SHARP ELECTRONICS CO., LTD.
Region: Taiwan
Update: 2015/11/03
INQUIRY
Key Specifications
Special Features：
• Independent 16 port PoE supported.
• Plug & Play supported.
• Multi stream supported.
• 3G mobile remote surveillance. (iPhone/ iPad/ Android)
• 2 way audio. (conference)
• Recording retention function supported.
• USB or remote firmware upgrade supported.
• Network online user management.
• Digital zoom on live and playback.
Specifications：
Compression Method |
H.264 |
Video BNC |
Main x1 |
Video VGA |
1 (Max : 1920 x 1080) |
Video HDMI |
1 (1920 x 1080) |
Color |
16.7 million |
Display Channel |
1 / 4 / 9 / 16 |
Recording Resolution |
4CH:1080P(1920x1080) 4CH@ 120FPS
720P(1280x720) 4CH@ 120FPS
8CH:1080P(1920x1080) 8CH@ 240FPS
720P(1280x720) 8CH@ 240FPS
16CH:1080P(1920x1080) 16CH@ 240FPS
720P(1280x720) 16CH@ 480FPS |
Record Quality |
Highest / Higher / Medium / Lower / Lowest |
Recording Mode |
Auto / manual / schedule / alarm |
Playback Mode |
Date & Time search / Event search |
Multi-task |
Live / Record / Play / Network / Backup |
Backup |
USB 2.0 / Network remote backup /DVD-RW (external) |
Audio Output |
RCA x1 |
HDD Record Mode |
Full stop / overwrite |
PTZ Control |
PELCO-P, PELCO-D, SAMSUNG |
Mobile Surveillance |
iPhone / iPad / Android |
IR Remote controller |
Standard |
Mouse |
Standard |
Ethernet |
RJ45 x 1 (10/100 M Base-T) |
Network-Function |
Support licensed CMS(100CH) / EMAP/ IE |
Network Connection |
TCP/IP, PPPoE, DHCP, DDNS |
Client Application |
Display / Playback / Backup / DVR control / PTZ Control |
Power Source |
AC 110V / 220V |
Operating Temperature |
5℃~40℃ (41℉~104℉) |
Operating Humidity |
Less than 90% |
Dimension |
430(W) x 89(H) x 450(D) mm |
Sequence Display |
Available |
Storage |
SATA x 8 (4TB each) |
Operation System |
Embedded Linux |
POE Build-In |
RJ45 x 16 (IEEE 802.3af) |
