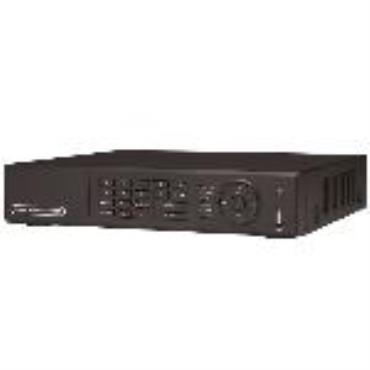

Hi Sharp HS-AHR600 16CH 720P/960H AHD Hybrid DVR
HI SHARP ELECTRONICS CO., LTD.
Region: Taiwan
Update: 2015/11/03
INQUIRY
Key Specifications
Key Features：
• Hybrid input in different channel (2 channel a set) simultaneously.
• 16 CH AHD 720P/960H record.
• H.264 standard compression algorithm, low bit rate, high picture quality.
• Dual stream - individual network video streaming and DVR record streaming.
• 3G phone remote view ( iPhone / iPad / Android ).
• HDD data retention days / Daylight saving time / NTP.
• Device ID setup for remote controller and control keyboard.
• Motion function enable schedule.
Specifications：
Compression method |
H.264 |
Input |
16CH AHD 720P / 960H |
Output |
VGA: 1 (Max : 1920 x 1080)
HDMI: 1 (1920 x 1080) |
Color |
16.7 million |
Display channel |
1 / 4 / 9 / 16 |
Sequence display |
Available |
Display resolution |
1920(H) x 1080(V) |
Recording resolution |
AHD:1280 x 720@240fps
960H:960 x 480@480fps |
Record quality |
Highest / Higher / Medium / Lower / Lowest |
Recording Mode |
Auto / manual / schedule / motion / alarm |
Playback mode |
Date & Time search / Event search |
Audio input |
RCA x 1 |
Audio output |
RCA x 1 |
Backup |
USB 2.0 / Network remote backup / DVD-RW (external) |
Storage |
SATA x 1 (4TB) |
HDD record mode |
Full stop / overwrite |
Ethernet |
10/100 M Base-T |
Network connection type |
TCP/IP, PPPoE, DHCP, DDNS(Auto DDNS) |
Mobile surveillance |
iPhone / iPad / Android |
Power Source |
DC12V |
Dimension |
300(W) x 64.2(H) x 254.9(D)mm |
Operation temperature |
5℃~40℃ (41℉~104℉) |
Operation Humidity |
Less than 90% |
Motion detect |
22 x15 grids camera for all channel |
Multi-task |
Live / Record / Play / Network / Backup |
PTZ Control |
PELCO-P, PELCO-D |
IR Remote controller |
Standard |
Mouse |
Standard |
Network-Function |
Support licensed CMS(100CH) / EMAP/ IE |
Client Application |
Display / Playback / Backup / DVR control / PTZ Control |
