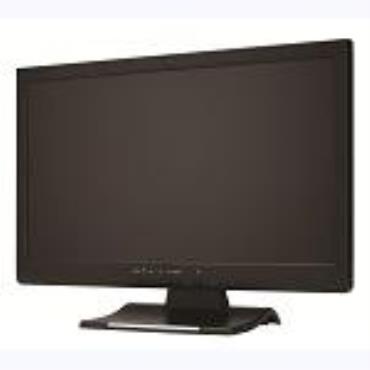

Hi Sharp HS-ML22W3 21.5 inches HDMI Monitor
HI SHARP ELECTRONICS CO., LTD.
Region: Taiwan
Update: 2015/11/03
INQUIRY
Key Specifications
Key Features :
• Professional LED Backlight Monitor for surveillance.
• Compatible with VGA(640 x 480), SVGA(800 x 600),XGA(1024 x 768), SXGA(1280 x 1024),
Full HD (1920 x 1080) resolution.
• All plastic case.
• Built-in RS485 function to operate PTZ dome or camera /
• DVR and monitor group management by remote controller (Patent No. M408892).
• Video input HDMI x 1 / BNC x 1 / VGA x 1.
• Video output BNC x 1.
• Audio input RCA x 2 / phone jack x 1.
• Audio speaker x 2.
Specifications :
Button control |
Power / OSD Control / Source |
Display resolution |
640 x 480 @ 60/72/75
800 x 600 @ 56/60/72/75
1024 x 768 @ 60/70/75
1280 x 1024 @ 60/75
1280 x 720 @ 60
1360X768 @ 60
1440 x 900 @ 60
1680X1050 @ 60
1920 x 1080 @ 60 |
Active area |
476.64(H) x 268.11(V)mm |
LCD panel type |
TN mode, Normally white |
Display Ratio |
16:9 |
Display color |
16.7M colors |
Brightness(Central) |
400 cd/m2 (*1) 250cd/m2 (*1) |
Contrast ratio |
1000 :1 |
Viewing angle |
Left 85° / Right 85° / Up 80° / Down 80° CR>10 |
Response time |
5 ms |
Input Voltage |
DC12V |
Input Signal |
1Vp-p composite video |
Output signal |
1.0Vp-p±0.2Vp-p composite video ( Auto Termination) |
input/output impedance |
75 ohm |
Audio input |
Audio In x 2, PC-Audio In x 1 |
Video input |
HDMIx1, Video In x 1 (BNC) |
Video output |
Video Out x 1 (BNC), VGA x 1 |
RS485 jack |
Built-in. Pin jack x 2, +/- |
Scanning system |
NTSC:525 lines, 60 fi elds / sec ; PAL:625 lines, 50 fi elds / sec |
Protocol |
Pelco P / Pelco D / customized protocol |
Control device |
Operate PTZ dome or camera / DVR and monitor group management
by remote controller |
Control ID |
PTZ dome or camera 1 ~ 255 / DVR 1 ~ 255 / Monitor 1 ~ 255 |
Speaker |
1W + 1W |
Power consumption |
40W |
Operation temperature |
-10℃ ~ 50℃ (14℉ ~ 122℉) |
Storage temperature |
-20℃ ~ 60℃ (-4℉ ~ 140℉) |
Video Timing(HDMI) |
480i / 480p / 576i / 576p / 720p / 1080i / 1080p |
