RS485 jack: Pin jackx2,+/- contact.

Protocol: Pelco P / Pelco D / Hisharp and customized protocol.

Control device: Operate PTZ dome and DVR by remote controller.

Control ID: PTZ dome 1~255 / DVR1~155

DC power out: Pin jackx2, 5V/500mA / GND

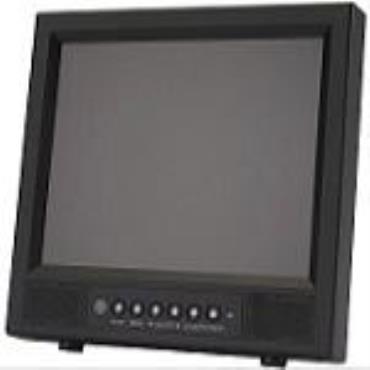

1.Professional TFT LCD for surveillance.

2.Front plastic / back metal case.

3.Video input BNC x 2 / VGA x 1 / S-Video x 1(w/o RS485).

4.Video output BNC x 2.

5.Audio Input phone jack x 2.

6.Audio speaker x 2.

7.Compatible with VGA(640X480), SVGA(800X600).

8.Full / Under / Over scale mode.

9.Picture-In-Picture feature that allow multi-picture display.

10.High brightness level and contrast ration with viewing super wide angle.

11.Built-in 3D comb filter and 3D de-interlace for crispy picture performance.

12.Fast response time and refresh rate without time lagging.

13.Provides 6500°K and 9300°K color temperature selection for user''''s preference.

14.VESA standards (75mm X 75mm) bracket.

15.Built-in RS485 (optional) : control PTZ dome and DVR.

Also coming 10.4"/15"/17"/19"

LCD 8.4"/10.4"/15"/17"/19" built-in light sensor
