* Manage up to 8 IP cameras
* Pure web-based administration
* Support resolution: 5MP/3MP/2MP/Full HD/MegaPixel
* 240 fps @ 2MP (H.264) or 480 fps @ 1.3MP (H.264)
* Support max. storage 6TB (3TB X 2)
* High quality Live/Playback video
* 4 channels synchronous playback
* Export Playback videos to AVI
* E-map and Google Map event alert
* Two-way audio
* Smart camera search
* Mobile devices remote monitoring
* Built-in 8 x DI, 4 x DO for event management
* Backup recorded video to USB HDD
* Support USB UPS
* Bundled with FREE CMS
High Stability

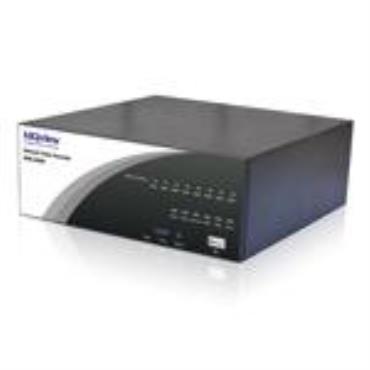

HIQ-3608 NVRs (Network Video Recorders) is an 8-channel NVRs thus are qualified to fulfill various video central management, transfer, storage, playback and event alarm, etc. With the great performance and high stability, HIQ-3608 is suitable to be applied to small-and-medium-business-scale surveillance system.
High Performance & High Quality
HIQ-3608 supports multiple resolutions: 5Mp / 3Mp / 2Mp / Full HD / Megapixel / FD1 / CIF / QCIF. The main compression formats are: H.264 / MPEG-4 / JPEG. The recording frame rate is up to 480 fps @ 1.3Mp or 240fos @ 2Mp, and the recording throughput is 80 Mbps. Therefore, no matter it is live video or playback video, HIQ-3608 performs excellent video quality.
Features
l Simple and high quality live monitor
HIQ-3608 supports multiple resolutions: 5Mp / 3Mp / 2Mp / Full HD / Megapixel / FD1 / CIF / QCIF. The GUI is a simple and clear web interface, and all functions are available with just a few clicks of the mouse. You can view the videos as the way you like: there are several layouts for your choice. Other functions such as taking a snapshot of the viewing video, sending and receiving audio from the video and starting recording immediately, all of these functions can be launched just through a single mouse-clicking.
l Handy Live Monitor
Your surveillance job can be supervised anywhere! Simply using your smart phone, without additional software required, you can view the live images with the web browser on your smart phone. Also, if you are in an area where bandwidth is limited, the video refresh rate can be adjusted remotely through your smart phone as well.
l 4-channel synchronous playback
With the synchronous playback of HIQ-3608, you are able to view playback videos at the same time up to 4 cameras. The HIQ-3608 web interface provides functions to search recorded video by time or by event and you can stop, pause, fast forward or rewind the playback videos anytime. If it was recorded in high resolution, you can zoom to view the playback video without losing any detail. The recorded video can be exported as AVI file for further investigation.
l Event alerts through Google Map
The Google map is embedded to HIQ-3608 web UI, providing instant event notification along with hiQview IP cameras' geographic information. You can zoom in to a specific region to monitor events from particular cameras within that region. If an event is triggered from a camera located outside of your current viewing area, the Google map moves automatically to the area where the event trigger camera is located.
l Easy maintain job
HIQ-3608 firmware upgrade can be completed using an USB flash disk. Simply place the firmware file in an USB flash disk and plug it into HIQ-3608, the upgrade process starts automatically.
Friendly GUI & Remote Access
HIQ-3608 NVR GUI (graphic user interface) is designed based on the “simple and friendly” principle. Through using web browsers on your personal computer or mobile devices (e.g., smart phones, PDAs), you can easily set up and operate HIQ-3608 on the remote sites.
Free CMS
Compared to large scale IP surveillance systems, hiQview provide our customers with CMS (Central Management System) freely bundled with HIQ-3608. hiQview CMS are capable of controlling up to 16 HIQ-3608. Totally, with the combination of hiQview IP cameras, HIQ-3608 NVR and hiQview CMS, you can build a 3-level IP surveillance system to manage 128
IP cameras. The 3-level architecture is certainly flexible to fulfill different environmental requirements.
