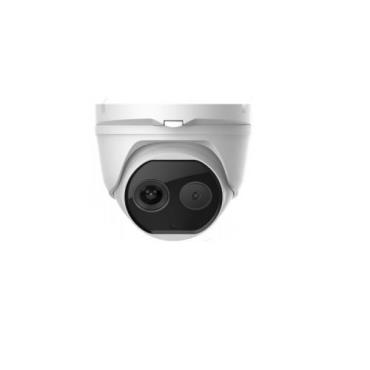

Thermal & Optical Hikvision Network Turret Camera DS-2TD1217-2/3/6 V1
Hikvision Digital Technology Co., Ltd.
Region: China
Update: 2019/09/02
INQUIRY
Key Specifications
Smart Function (Thermal Imaging)
- Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mK (25°C), F#=1.1
- Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
- Reliable temperature exception alarm function
- Advanced fire detection algorithm
- Bi-spectrum image fusion, picture in picture preview
Thermal Imaging Module Function
- 160 × 120 (the resolution of output image is 320 × 240) resolution sensor, high sensitivity sensor, support contrast adjustment
- Shutter adjustment in various modes
- 3D DNR, 15 palettes of color adjustable, image detail enhancement
Thermal Module |
|---|
Image sensor: |
|
Vanadium Oxide Uncooled Focal Plane Arrays |
Detector Pitch: |
|
17um |
Response Wavebond: |
|
8um to 14um |
Optical Camera |
|---|
Min. Illumination: |
|
Color: 0.002 lux @ (F1.2 , AGC On )
B/W : 0.0002 lux @ (F1.2 , AGC On ) |
Max. Image Resolution: |
|
1920 × 1080 |
Focal Length: |
|
6 mm |
WDR: |
|
120dB |
Shutter Speed: |
|
1 to 1/100,000s |
Day & Night: |
|
IR Cut Filter with Auto Switch |
Image Function |
|---|
Bi-spectrum Image Fusion: |
|
Fusion view of thermal view and overlaid details of the optical channel |
Picture in Picture: |
|
Combins details of thermal and optical image PIP, overlay thermal image on optical image |
Smart Function |
|---|
VCA: |
|
Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA
rules |
Temperature Measurement: |
|
Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line) |
Temperature Range: |
|
-20 ° C to 150 ° C (-4 ° C to 302 ° F) |
Temperature Accuracy: |
|
±8 ° C (14.4 ° F) |
Fire Detection: |
|
Support 10 fire points |
Infrared |
|---|
IR IntenSity and Angle: |
|
Auto Adjust |
Network |
|---|
Main Stream: |
|
Visible Light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) Thermal: 50fps (160 × 120 (the resolution of output image is 320 × 240)) |
Sub Stream: |
|
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 50fps (160 × 120 (the resolution of output image is 320 × 240)) |
Video Compression: |
|
H.265/H.264/MJPEG, H.265+, H.264+ encoding with Baseline/Main/High Profile |
Audio Compression: |
|
G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
Protocols: |
|
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I
GMP,ICMP,DHCP, PPPoE, Bonjour |
Simultaneous live view: |
|
Up to 20-ch |
User/Host Level: |
|
Up to 32 users, 3 levels: Administrator, Operator, User |
Security Measures: |
|
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,
IP address filtering |
Integration |
|---|
Alarm Input: |
|
1-ch Input (0-5V DC) |
Alarm Action: |
|
SD recording/Relay output/Smart capture/FTP upload/Email linkage |
Audio Input: |
|
1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10% |
Audio Output: |
|
Linear Level; Impedance: 600Ω |
Analog Video Output: |
|
1.0V [p-p]/75Ω, PAL/NTSC/BNC |
Application Programming: |
|
Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform |
Client: |
|
iVMS-4200 |
Web Browser: |
|
IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac) |
