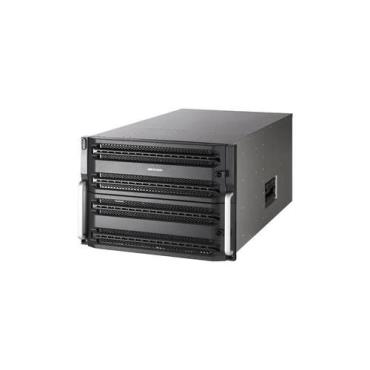

Hikvision Cloud Storage DS-A830XXS-ICVS
Hikvision Digital Technology Co., Ltd.
Region: China
Update: 2018/12/10
INQUIRY
Key Specifications
PerformHardware Platform of New Generation
PCI-E 3.0 bus.
- 12 Gb SAS 3.0 high-speed I/O channel.
- Brand new controller design.
- Redundant design for key components.
System Configuration of High Performance
- Modular and no-cable design.
- Single controller with two Xeon 64-bit 6-core processors.
- 64 GB cache.
- 6 Gigabit network interfaces.
Ultra-Fault-Tolerant Network RAID
- N + M: K redundant mechanism.
- When there are K fault devices, data will not lose, and the business will not be interrupted.
- When the fault device number exceeds K, the business will not be interrupted.
SAS Exchange Architecture of High Availability
- When SAS is exchanging, if the controller software fails, it will not affect the HDD capacity of the current node and normal use of data.
Stream Data Management Structure of High Performance
- Based on the bottom layer management structure of the stream media, it can solve the problem that the damaged file system will lead to file unreadability or loss. The cyclic covering writing will not produce file fragments.
Direct Storage of Mixed Stream
- Supports mixed storage of video stream and picture stream.
- Supports camera access through RTSP, ONVIF, PSIA protocol, etc.
User-Friendly Operation and Maintenance
- Centralized operation and maintenance, realizing centralized management of multi-devices.
- Supports changing disk/device in batch.
- Supports abundant alarm management methods, including alarm via indicators, mobile phone messages, emails, etc. to raise device maintenance efficiency.
|
---|
Video (4Mbps): |
|
160-ch |
Video (2Mbps): |
|
320-ch |
Controller |
---|
Cache: |
|
64 GB standard, extendable to 384 GB |
Processor: |
|
2 Xeon 64-bit 6-core processors |
Storage |
---|
Hot-plugging: |
|
Supported |
HDD slot: |
|
24 |
Capacity: |
|
1 TB/2 TB/3 TB/4 TB/6 TB/8 TB/10 TB (enterprise HDD) |
RAID: |
|
Network RAID: N + M: K, N + M ≤ 16, M ≥ K, N∈[1, 15], M∈[1, 4], K∈[1, 4] |
Interface: |
|
SAS/SATA |
Device Maintenance and Management |
---|
Alarm method: |
|
Audio, indicator, GUI |
Management method: |
|
GUI based on web, serial port CLI, management based on platform |
Software module |
---|
Cache protection: |
|
Supports customizing BBU in case of unexpected power failure to protect the cache data from being lost. |
Disk management: |
|
Disk detection pre-alarm and repair |
General |
---|
Dimension(W x H x D): |
|
486 x 173 x 760 mm (19.1 x 6.8 x 29.9 inch) |
Power Consumption (with HDD): |
|
≤ 484 W |
Power supply: |
|
Redundant 1 + 1, ≤ 550 W |
Humidity: |
|
Working: 20% to 80%RH (non-condensing/frozen)
Storing: 5% to 90%RH (non-condensing/frozen) |
Temperature: |
|
Working: +5 °C to +40 °C (+41 °F to +104 °F)
Storing: -20 °C to +70 °C (-4 °F to +158 °F) |
Weight (without HDD): |
|
≤ 43 kg (94.8 lb) |
External Interfaces |
---|
SAS extension interface: |
|
3, 12 Gbps SAS 3.0 |
Data: |
|
6, 1000M Ethernet interface (8 × GbE or 4 × 10GbE is extendable) |
Management: |
|
1, 1000M Ethernet interface |
COM: |
|
2: 1 for RS-232, 1 for RS-485 |
USB: |
|
3 (2 × USB 3.0, 1 × USB 2.0) |
