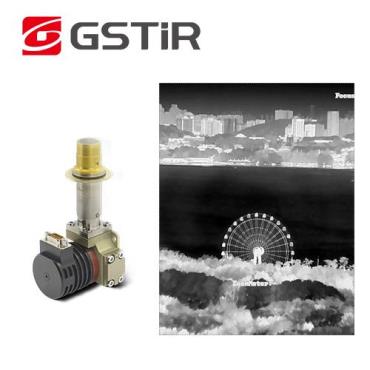

Being one of the HgCdTe/MCT cooled infrared detectors developed by Global Sensor Technology (GST). C615M is a 640×512 resolution, 15μm pixel size, MCT technology based mid wave infrared detector that could present clear images. Equipped with industry standard interfaces and RS058/RS046/LS734 cryocoolers, C615M is designed to meet various customer requirements of light weight, low power consumption, long life and high reliability. It is with the most popular 640x512/15μm spec for almost all possible applications like long range surveillance system, handheld thermal imagers, gas leakage detection cameras etc.

The C615M RS058 is interchangeable with most mainstream Scorpio like products when configured with RS058 integrated stirling cooler. The dewar design, the cooler dimension, and the mechanical/electrical interface are almost the same so that the camera integrators only need to take out their old defective counterpart and connect our interchangeable C615M RS058 easily for further internal configuration.

It can be widely used in many high end applications, such as Handheld Reconnaissance System, Remote Monitoring System, Search & Tracking System, Enhanced Flight Vision System, Electro-Optical Payload etc.

Main Features:

Sharp & Clear Imaging

• Good uniformity, effective pixel rate＞99.5%

• High thermal sensitivity

Guaranteed Continuous Supply

• Interchangeable standard interface

• Mass production, good consistency

Designed for Specific Applications

• Wavelength can be customized

• F number can be customized

• Mounting surface can be customized

• Multiple cryocooler available

----------------------------------------------------------
