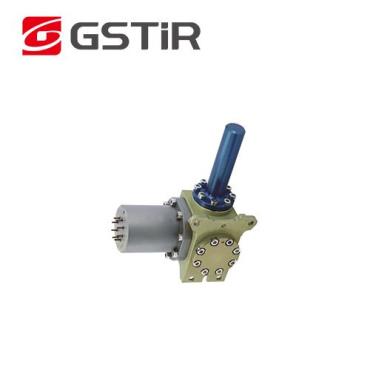

RS046 is a member of the integral rotary stirling cryocooler series developed by Global Sensor Technology (GST). It provides a miniature closed cycle cooling system to ensure a cryogenic working environment for the normal operation of cooled infrared detectors.

With compact mechanical structure, and advanced c-rings sealing, RS046 detector dewar cooler (ddc) was specially developed to fit the applications where low input power, volume and weight are the most important parameters.

Due to its lightweight, miniaturization and low power consumption, it is easier for the cryo cooler to be integrated into various terminal products, which can greatly reduce the cost and meet different customized needs of customers.

Main Features:

• MTTF≥10000hrs

• Cooling Power: (@77K@20℃)≥750mW

• Cooling Time: ≤5min(500J@77K@20℃)

• Small Size

• Low Noise

• Low Consumption

----------------------------------------------------------
