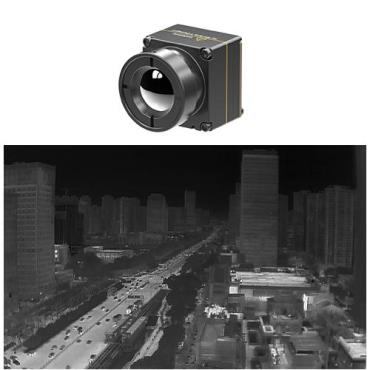

The iTL612R infrared camera core integrates 640x512 / 12μm wafer level package (WLP) infrared thermal detector. It is an uncooled LWIR radiometric thermal imaging module for drones with spectral range from 8 to 14μm.

iTL612 thermal camera module features in sharp and crisp image presentation, compact size and low cost. Oriented for fully optimized SWaP, iTL612R uncooled thermal module provides a reliable solution for infrared system integration with limited space. Its compact structure has reached top level of the same specification module. It also has an optional thermographic function with measurement range from -20ºC~550 ºC for industrial temperature measurement.

The iTL612 thermal module is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.

Main Features

Compact & Lightweight Design

• Size: 21mm×22.3mm×27.3mm (with 9.1mm lens)

• Weight: 20.8g±1.5g (with 9.1mm lens)

• Low power consumption as low as 0.7W

Clear Image & Accurate Radiometry

• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE

• Support Windows/Linux/ARM SDK

• Support regional, point & isotherm temperature measurement

Various Interfaces for Easy Integration

• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control

-----------------------------------------------------------------
