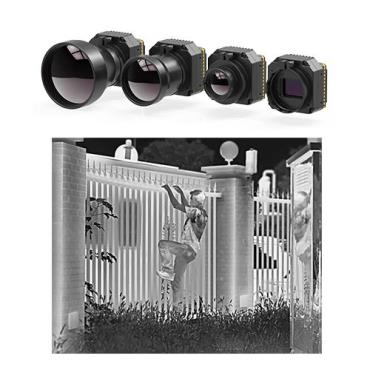

Being one of the PLUG series uncooled thermal camera module developed by Global Sensor Technology (GST), PLUG617 thermal camera module integrates GST self-developed metal package 640x512/17µm uncooled thermal imaging sensor.

PLUG series thermal camera modules are specially developed for various personalized observation requirements. Some professional thermal imaging solutions have been applied to various applications, such as Security Monitoring, Predictive Maintenance, UAV Payloads, Machine Vision, Metallurgical Petrochemical, Firefighting & Rescue, Building Inspection, Outdoors, Rail Traffic.

Specifications

-Model: PLUG617

-Resolution: 640×512

-Pixel Size: 17μm

-Spectral Range: 8~14μm

-Typical NETD: <30mK

-Frame Rate: 9Hz/25Hz/30Hz/50Hz

-Typical Power Consumption: 1.4W

-Dimension (mm): 44.5×45.95×36.6

-Weight: 90g±3g

-Optional Lens

Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm

Motorized Lens: 75mm/100mm/150mm

Continuous Zoom: 30-150mm

-----------------------------------------------------------------
