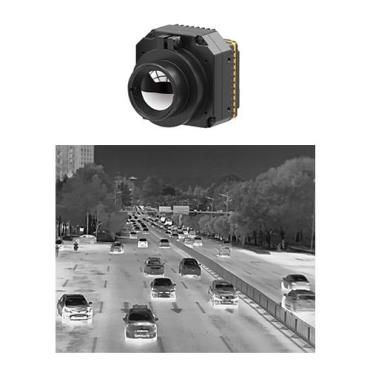

PLUG612 thermal imaging module integrates GST uncooled focal plane array infrared detector and uses international mainstream vanadium oxide material to present more outstanding comprehensive performance. With standard 640x512 VGA format at 12μm infrared detector, PLUG612 thermal imaging module will exceed your most demanding requirements.

PLUG series thermal imaging modules are applied to various applications, such as Security Monitoring, Predictive Maintenance, UAV Payloads, Machine Vision, Metallurgical Petrochemical, Firefighting & Rescue, Building Inspection, Outdoors, Rail Traffic

Specifications

-Model: PLUG612

-Resolution: 640×512

-Pixel Size: 12μm

-Spectral Range: 8~14μm

-Typical NETD: <40mK

-Frame Rate: 9Hz/25Hz/30Hz/50Hz

-Typical Power Consumption: 1.4W

-Dimension (mm): 44.5×44.5×36.6

-Weight: 85g±3g

-Optional Lens: Fixed Focus Athermal: 13mm/19mm/24mm

-----------------------------------------------------------------

Learn more GST infrared products
