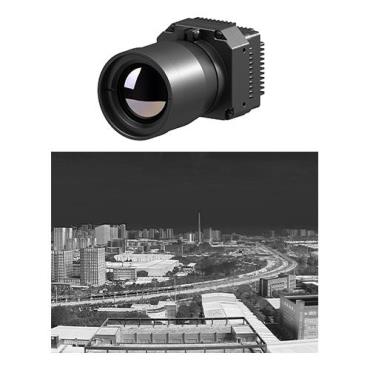

PLUG1212 is one of the PLUG series uncooled infrared thermal camera core developed by Global Sensor Technology (GST) which is a manufacturer of cooled uncooled infrared detectors and OEM thermal camera cores.

Consisted of 1280x1024@12µm uncooled infrared detector, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG1212 infrared camera core provides clear image and superior performance.

PLUG series infrared thermal cores are specially developed for various personalized observation requirements, which provide various standard industrial interfaces and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications.

Specifications

Model: PLUG1212

Resolution: 1280×1024

Pixel Pitch: 12μm

Spectral Range: 8~14μm

Typical NETD: <50mK

Frame Rate: 25Hz

Digital Video: RAW/YUV/BT1120

Image Algorithm: NUC/AGC/IDE

Typical Power Consumption: 2.0W

Size: 56mm×56mm×40.2mm

Weight: 220g±5g

Optional Lens: Fixed Focus Athermal: 19mm/25mm

Continuous Zoom: 30~90mm, 30~180mm

-----------------------------------------------------------------
