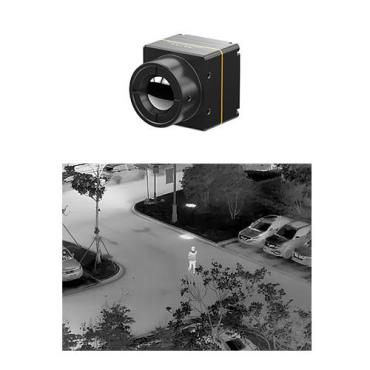

COIN417G2 uncooled infrared module is a new generation version of COIN417 developed by Global Sensor Technology (GST). It integrates 400x300@17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm.

The COIN417G2 infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

Specification

Model: COIN417G2/RG2

Sensitive Material: Vanadium Oxide

Resolution: 400×300

Pixel Size: 17μm

Spectral Range 8μm ~14μm

Typical NETD: ≤40mK

Frame Rate: 50Hz/30Hz/25Hz

Analog Video: PAL/NTSC

Digital Video: YUV/BT.656/LVDS/USB2.0

Image Algorithm: NUC/3DNR/DNS/DRC/EE

Typical Power Consumption: 0.7W

Operating Temperature Range: -10℃~+50℃

Temperature Measurement Range: -20℃~150℃, 0℃~550℃; Support Customization and Expansion

Temperature Measurement Accuracy: Greater of ±3℃ or ±3%

Optional Lens: Fixed Athermal: 9.1mm/13mm/19mm/25mm

-----------------------------------------------------------------
