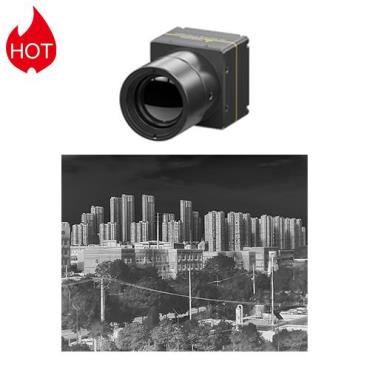

COIN612 is one of the COIN series infrared thermal camera modules developed by Global Sensor Technology (GST). It integrates 640x512@12μm wafer level package (WLP) infrared thermal detector, high performance signal processing circuit and image processing algorithm.

The COIN612 infrared camera core features in sharp and crisp image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.

Its lightweight and flexible features with various industry standard interfaces make it beneficial to OEM customers for secondary development and integration in all kinds of infrared thermal cameras.

Specifications

Model: COIN612/R

Sensitive Material: Vanadium Oxide

Resolution: 640x512

Pixel Pitch: 12μm

Spectral Range: 8~14μm

NETD: ≤40mk

Frame Rate: 25Hz/30Hz

Analog Video: PAL/NTSC

Typical Power Consumption: 0.9W

Temperature Measurement Range: -20°C~150°C, 0°C~550°C(Support Expansion & Customization)

Temperature Accuracy: Greater of ±3°C or ±3%

Optional Lens: Fixed Focus Athermal: 9.1mm/13mm/19mm

-----------------------------------------------------------------
