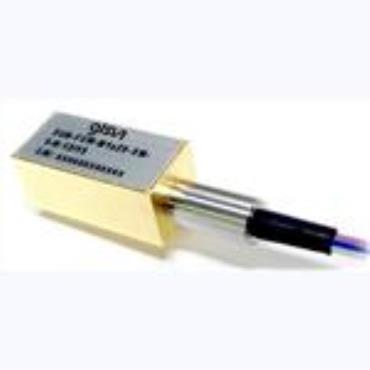

Glsun Mini Single Ended optical switch,which is compact package. it could be easy to integrate into a high density optical communication system.The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection, Network Test System and Instrumentations.

Mini single-ended Optical Switch - Specifications

Parameters

Unit

M1×1S or M1×2S or M2×2BS

Wavelength Range

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion Loss 1, 2

dB

M1×1S

Typ: 0.4 Max: 0.6

M1×2S or M2×2BS

Typ: 0.6 Max: 0.8

Return Loss 1, 2

dB

SM ≥ 50

Crosstalk 1

dB

SM ≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3.0 or 5.0

Durability

Cycles

≥ 10 Million

Voltage Pluse Width

(Latching)

ms

≥ 20

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating Temperature

℃

-20 ~ +70

Storage Temperature

℃

-40 ~ +85

Relative Humidity

%

5 ~ 95

Weight

g

13

Dimension

mm

(L )20×(W)9.5×(H)8.5 ±0.2

Note: 1 Within operating temperature and SOP.

2 Excluding Connectors.
