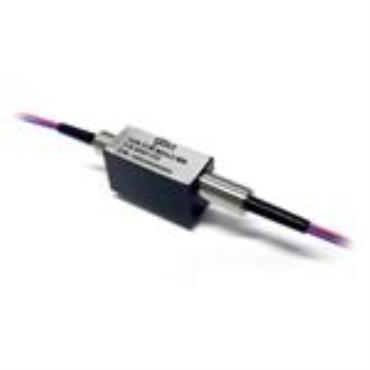

Glsun Mini Optical switch,which is famous for its great performance, fast switching speed ,low insertion loss and compact dimension. With compact package(L)21.0x(W)9.0x(H)12.0 ± 0.2, it could be easy to integrate into a high density optical communication system.The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection, Network Test System and Instrumentations.

The Mini Optical Switch include:Mini 1×2,Mini 2×2, Mini2×2B

INTRODUCTION:

Mini Dual Optical Switch - Features：

·Low Insertion Loss

·Wide Wavelength Range

·Low Crosstalk

·High Stability

·High Reliability

·Epoxy-free on Optical Path

·Latching and Non-latching

Mini Dual Optical Switch - Applications：

·R&D in Laboratory

·System Monitoring

·OADM

·MAN (Metropolitan Area Network)

Mini Dual Optical Switch - Specification

Parameters

Unit

MD1×2 or MD2×2 or MD2×2B

MD1×2 or MD2×2B

Wavelength Range

nm

850±40 / 1300±40

1260 ~ 1650

Test Wavelength

nm

850 / 1310

1310 / 1550

Insertion Loss 1, 2,

dB

Typ: 0.8 Max: 1.2

Return Loss 1, 2,

dB

MM ≥ 30 SM ≥ 50

Crosstalk 1,

dB

MM ≥ 35 SM ≥ 55

PDL

dB

≤0.05

WDL

dB

≤0.3

Repeatability

dB

≤±0.02

Operating Voltage

V

5.0

Voltage Pulse Width

(Latching)

ms

≥ 20

Durability

Cycles

≥ 10 Million

Switching Time

ms

≤8

Optical Power

mW

≤500

Operating

Temperature

℃

-5 ~ +70

Storage

Temperature

℃

-40 ~ +85

Relative Humidity

%

5 ~ 95

Dimension

mm

(L)21.0×(W)9.0×(H)12.0 ± 0.2

Note: 1 Within operating temperature and SOP.

2 Excluding Connectors.
