Intelligent Infra Red High Speed P/T/Z System

Rugged IR PTZ Camera

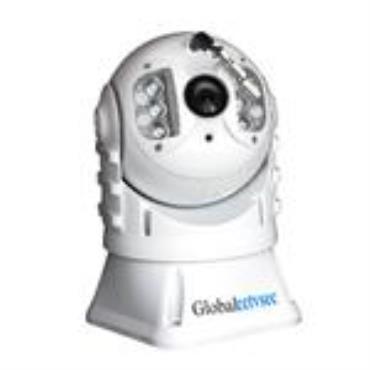

Smart Mobile Vehicle PTZ IR Camera GCS970 Series

Mobile Surveillance,Shockproof & waterproof Vehicle PTZ Camera

Our new IR-PTZ roof-top, mobile PTZ camera leads our surveillance line-up. Small form-factor, high quality aluminum housing construction, 22x, 23x and 36x optical zoom modules,combined with our 150 meter IR, give you an unparallelled in-car or remote control solution day or night.

Smart Mobile Vehicle PTZ IR Camera GCS970 Series

Shockproof & waterproof Vehicle PTZ Camera

Smart PTZ IR cameras,Portable All-Condition IR/Infrared PTZ Cameras

Model : GCS970-22X / GCS970-23X / GCS970-36X

Description:

GCS970 series IR/Infrared PTZ camera is designed for fixed and mobile video surveillance application. It consists of: high resolution zoom module, powerful IR (infrared) lighting module, precise PTZ system, damping systems.

Based on many years’ exploration in the field of security industry, we have designed these series of products.With the perfect sealing design, it can easily deal the rain, the wave and so on.Owing to the design of shock absorber, the dome achieves better shockproof performance.Besides,the wind resistance is also an outstanding feature.

Feature:

Minimum illumination 0Lux,Efficient IR/infrared lighting with IR range up to 150M, auto switch of high/low beam IR lights as per zooming;

Built-efficient heat treatment device,reduce dome cavity temperature inside the dome cover to prevent fogging;

Constant current circuit design, Infrared lamp life : 50,000 hours.;

New design of PTZ driving system provides anti-vibration performance and high precision of PTZ positioning;

Supports multi-language menu and operation prompting function, friendly user interface;

Wide range of voltage input, anti-surge, to avoid wrong connection;

Super-cooling design, impact, corrosion, IP Protection up to IP67, support underwater work;

High strength aluminum alloy die-cast housing overall, all-metal structure inside;

Pan Range 360° Continuous ,Tilt Range -25°~55° (Auto Flip);

Pan Speed: 0.5° -120°/s, adjustable; Tilt Speed: 0.5° ~90°/s, adjustable; Preset 255

3D Intelligent positioning;

The wiper cleaning function optional;

Set-off memory;

Park Action, different scanning mode without human operation: position, auto scanning, pattern scanning, auto cruising scanning;

Power up action;

Broadcast address;

Soft address supported;

Self-adaption of Protocol & Baud rate;

Temperature, coordinate and time display;

Model GCS970-22X GCS970-23X GCS970-36X

camera Image Sensor 1/3″ 960H CCD 1/4″ 760H CCD 1/4″ Exview HAD CCD

Effective Pixel 550,000 effective pixels, 650TVL 440,000 effective pixels, 540TVL 440,000 effective pixels, 550TVL

Min Illumination 0.001 lx(ICR ON,1/50 Sec) 0.01 lx(ICR ON 1/50 Sec) Color 1.4Lux, black 0.01Lux

White Balance Auto, Auto Tracking White Balance (ATW), indoor, outdoor, one-touch manual

Gain Control Auto / Manual

S/N Ratio ≥ 50dB

BLC On/Off

WDR Yes

Electronic Shutter 1/1 to 1/10, 000 seconds, 22 step

Day and Night Mode Filter switch

Digital zoom 12X

Privacy masking ON / OFF (8)

Aggregation mode Auto / Manual

Camera lens Focal length 4.7MM ~ 103.4mm, 22X Optical Zoom 3.84mm ~ 88.4mm, 23X Optical Zoom 3.4mm ~ 122.4mm, 36X Optical Zoom

Maximum aperture ratio F1.4 (W) ~ F2.8 (T) F1.6 (W) ~ F3.7 (T) F1.6 (W) ~ F4.5 (T)

horizontal view angle 48.0o (wide) to 2.8o (tele) 55.8o (wide) to 2.1o (tele) 57.8o (wide) to 1.7o (tele)

minimum working distance 10mm (wide angle), 1000mm (Remote) 10mm (wide angle), 1000mm (Remote) 320mm (wide angle), 1500mm (Remote)

PTZ 3 dimensional intelligent positioning Support

Keying maximum speed 120 ° /s

Pan Range 360° continuous

Pan Speed 0.5° -120°/s, adjustable

Tilt Range -25°~55°

Tilt Speed 0.5° ~120°/s adjustable

Preset 255

Proportional variable times support

Cruise scanning 6, every can add 18 preset points, residence time can be set

Scan pattern 4, each path record time of 5-500 minutes

left right So scan Article 1

Automatic horizontal scanning 360 °

Idle time 3 seconds for -100 minutes

The timing of action Preset point / pattern scan / Cruise scanning / automatic scanning / frame scan

The electric action Power off before the position / power down before action pre / pattern scan / Cruise scanning / automatic scanning / frame scan

Power off memory Support

Azimuth information display Support

IR (Infrared) IR Range 150m

Infrared angle According to the focal length can be adjusted

General Menu Chinese ,English

Control mode RS-485

Control protocol PELCO-P and PELCO-D, HIKVISION, SAMSUNG (protocol can be added)

Information display The ball machine, preset, scanning, scanning, scan the headlines about regional display, alarm clock, lens ratio, indicating

Power Supply DC12V-24V, 50Hz

Power consumption 30W

Protection grade IP67, TVS 3000V lightning protection, anti wave

Working temperature -40 ℃ ~ 65 ℃, humidity is less than 90%
