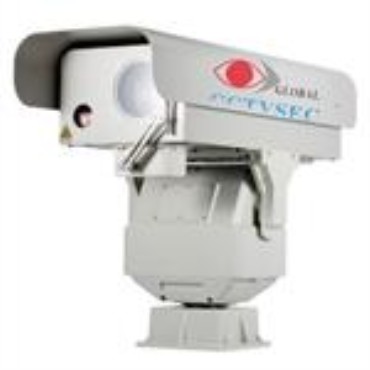

Long Range Fog Penetration Laser Night Vision PTZ Camera GCS-LRC

Unique Features:

Boasts the world’s most advanced third-generation uncooled VOx infrared focal plane array(FPA) with 320×240 pixels;

Optional built in HQ2 fog penetrate camera or mega pixel camera ??

Lens options: 10~320mm/ 23~506mm/20~600mm/12.5~750mm (Motorized focus, zoom and auto iris) ??

Built in system memory with surge & non-volatile protection ??

Waterproof (IP66) and vandal proof design ??

Geared pan/tilt design with auto-lock function and optional "micro-step" control ??

Unique DIP switch & hotkey design simplify system setup ??

CCD window with filmed and toughened glass ??

Wiper, heater & internal temperature control ?

Alarm box and water pump system for optional ??

Compatible to PELCO P/D protocol and customized protocol for optional ??

RS-485 communication port.?

Unique Firmware Online Upgrade (FOU) provide convenience for customized requirement and system maintenance .

Pan/Tilt Features:

OSD password protection, prevent unauthorized change to the system?

OSD programming menu, inside temperature and PTZ (Title/Time/Pan/Tilt/Zoom display) ?

User definable power-up action and temperature control ?

User definable 80 target presets, 8 preset tours, preset video frozen ?

Privacy Mask function, 8 privacy zone ?

Programmable part action & auto scan ?

User definable left and right limitation, proportional pan speed ?

Auto/manual calibration ensure accurate motor operation ?

Electrical & Mechanical Parameter

Input voltage: AC24V/DC24V, 50HZ ?

Maximum Power Consumption: 180Watts ?

Continuous working temperature: -20°C ~ +55°C ?

Storage temperature: -30°C ~ +70°C ?

Net weight: 45KG ?

Size: 66 x27 x18 cm (Lx Wx H) ?
